OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANN5081005 OBO BETTERMANN PROTECTION DATA TD-4/I

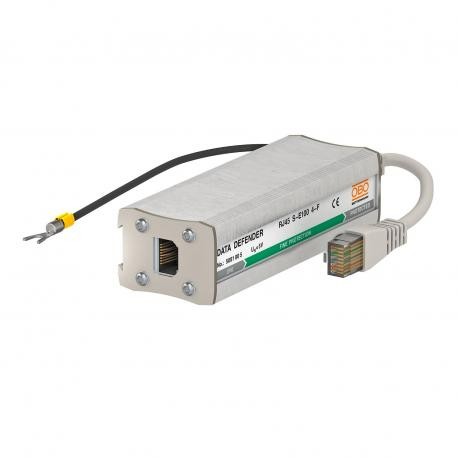

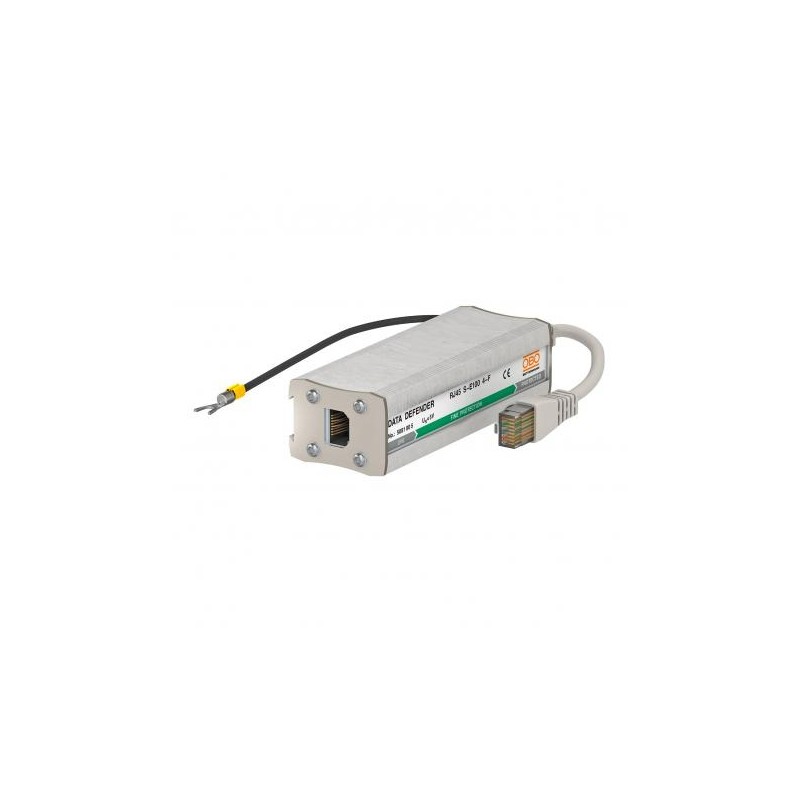

OBO BETTERMANN RJ45 S-E100 4-F 5081005 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5081005 OBO BETTERMANN PROTECTION DATA TD-4/I

Reference: RJ45 S-E100 4-F

Code: 5081005

Manufacturer: OBO BETTERMANN

Description:

PROTECTION DATA TD-4/I
Fine protection for 4-wire information technology systems with RJ45. Data line protection device for IT systems • In aluminium housing • RJ45 connector• Incl. 150 mm connection cable with RJ45 connectors• Simple mounting using adapter• 2-stage protection circuit • DIN rail mounting with DLS-BS accessories (5082 38 2)Application: Twisted Pair, control circuits, RJ45 communication cables

Categories:

  • Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 64,08 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Arrestor monitoringno
Capacity (wire-earth)<20 pF
Capacity (wire-wire)<50 pF
Channel performance Ansi/EACAT 5e
Channel performance ISO/IECClass E
CO2 Footprint (GWP) Cradle-to-Gate1,4923 kg CO2e / 1 Piece
Cut-off frequency100 MHz
Dimension6.2V
Earthing via:Connection cable
Impulse durability wire-earthC1: 1 kV / 0,5 kA (8/20µs)
Impulse durability wire-wireC1: 1 kV / 0,5 kA (8/20µs)
Insertion loss≤3 dB
Insulation resistance>500 MΩ
KategorieType 2+3 / C2+C1
Lightning protection zone LPZ2→3
Maximum continuous voltage AC4,2 V
Maximum continuous voltage DC6 V
Nominal load current AC0,7 A
Nominal load current DC1 A
Number of poles4
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemRJ45
Protection level wire-earth<750 V
Protection level wire-wire<40 V
Protection ratingIP40
ScreeningIndirect
Shielding connection availableyes
Signalling on deviceWithout
SPD to IEC 61643-21Class II+III / C2+C1
Testing standardIEC 61643-21
Total discharge current (8/20)2,5 kA
Version forFine protection, 4 wires + shield
