5050111 OBO BETTERMANN SENS. GROUND 950 Z 1
950 Z 1
5050111
OBO BETTERMANN
10
SENS. GROUND 950 Z 1

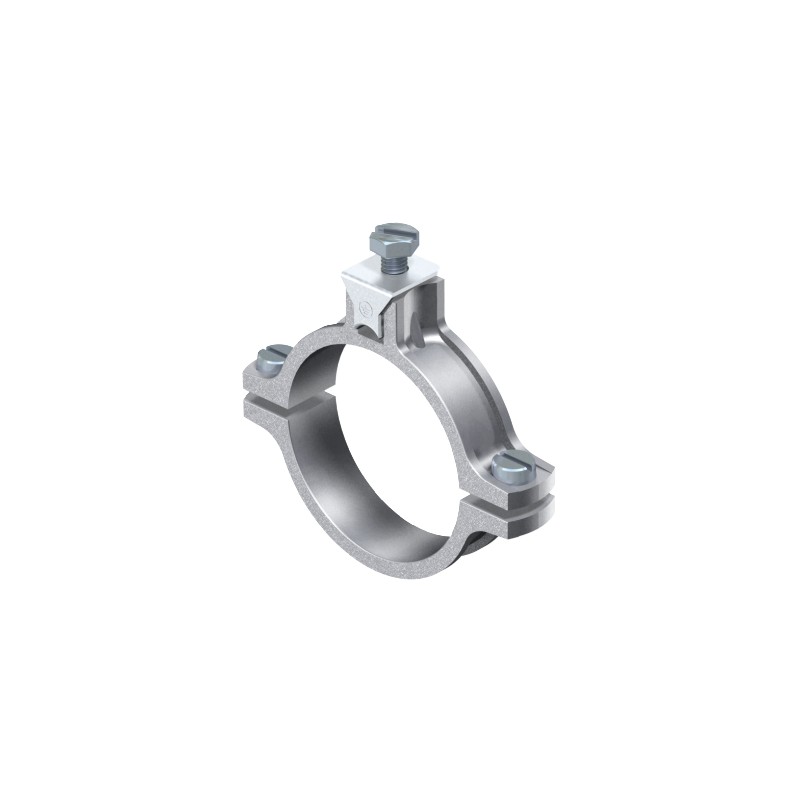

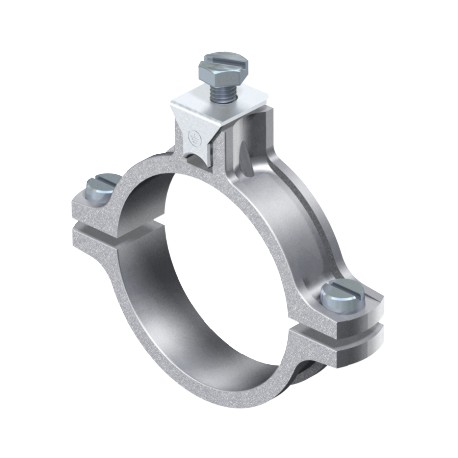

Earthing strap, type 950. • For pipes Ø 1/4"-2"• Connection options: conductors to 35 mm² or round conductors to Ø 6 mm• With captive pressure strip, 2 cylinder bolts M6 x 16 and 1 hex-head screw M6 x 16 from galvanised steel, top and bottom part of clamp from die-cast zinc
Earthing, lightning and surge protection > Earthing pipe clamp
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D | 1 |
|---|---|
| Clamping range D, max. | 34,5 mm |
| Clamping range D, min. | 31,5 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3315 kg CO2e / 1 Piece |
| Cross-section of cable to be connected, max. | 35 mm² |
| Dimension | 1" |
| Dimension A | 66 mm |
|---|---|
| Dimension D | 34,5 mm |
| Dimension X | 3 mm |
| Material | Die-cast zinc |
| Number of conductors | 1 |
| Surface | Electrogalvanized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
| 5050111 OBO BETTERMANN SENS. GROUND 950 Z 1 | 57 Kbytes |
|
