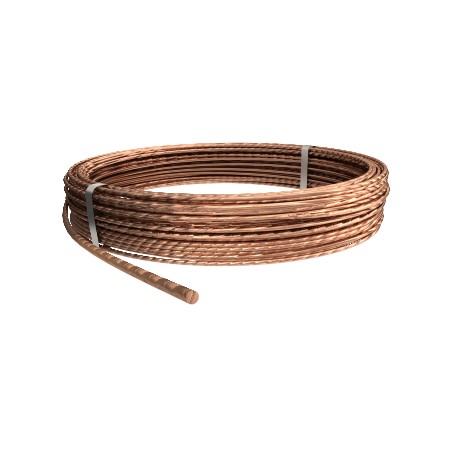

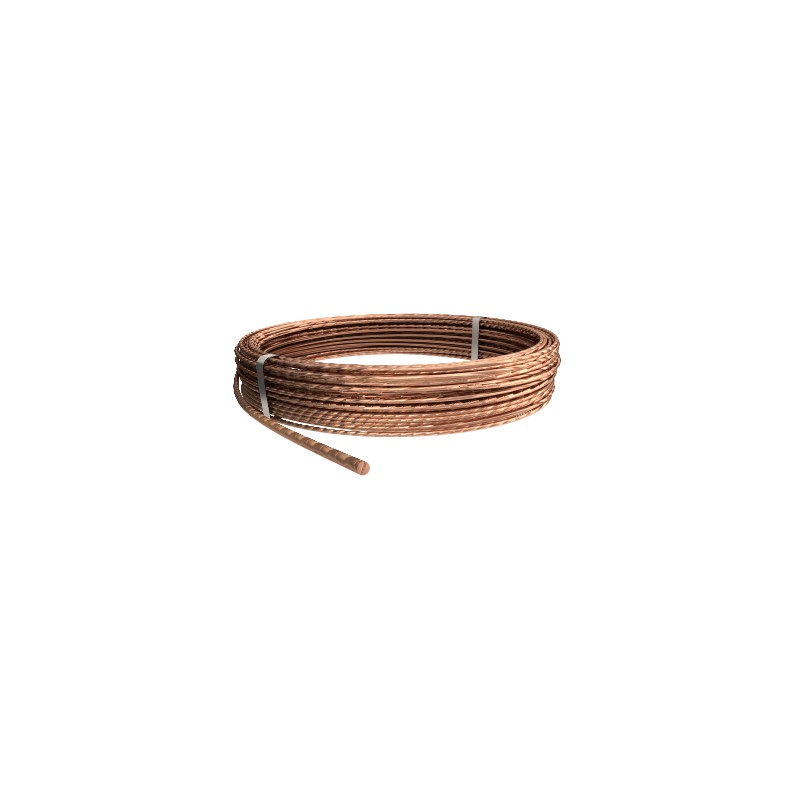

5021652 OBO BETTERMANN CABLE COPPER S 9-CU

Reference: S 9-CU

Code: 5021652

Manufacturer: OBO BETTERMANN

Description:

CABLE COPPER S 9-CU
Copper cable. • Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Categories:

  • Earthing, lightning and surge protection > Metal cable
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 2.662,79 €

Unit Price: 26,6279 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ColourCopper
Cross-section50 mm²
Diameter9 mm
Diameter of the individual wires1,8 mm
Dimension19x1,8mm
Dimension D9 mm
Length100000 mm
MaterialCopper
Material jacketWithout
Nomal ring (approx. m)100
Normal ring (ca. kg)45
Number of individual wires19
