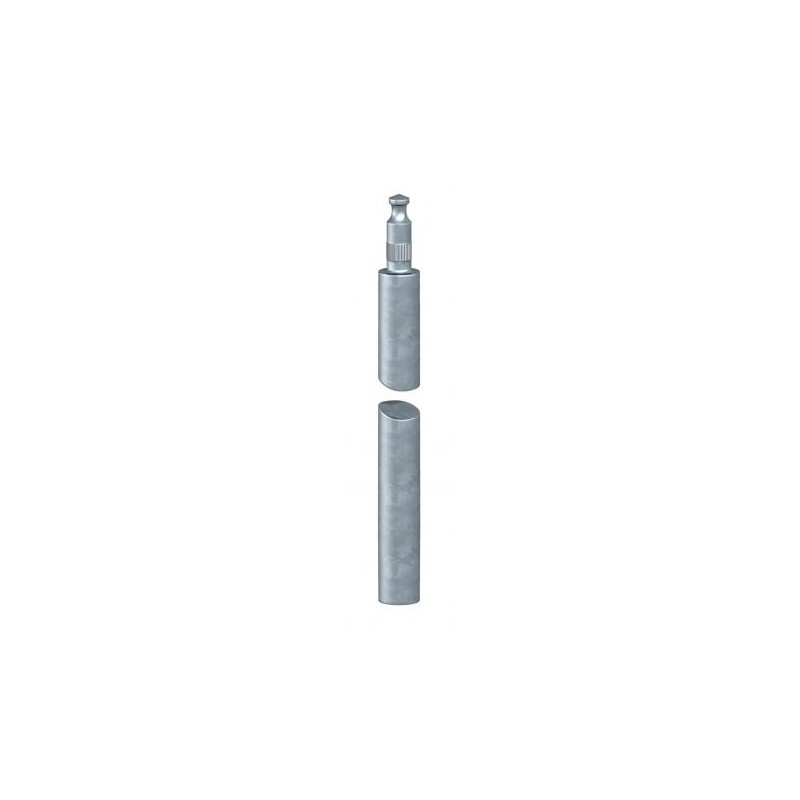

5000955 OBO BETTERMANN PICA EARTH 219/20 BP FT 1.5 M

Reference: 219 25 BP FT

Code: 5000955

Manufacturer: OBO BETTERMANN

Description:

PICA EARTH 219/20 BP FT 1.5 M
Earth rod BP hot galvanised, 25 mm. • "BP" system (Bundespost)• Very good contacting properties with soft metal inlay in the bore hole• With peg and bore for linking together• FT version with zinc coating approx. 130 µm• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2

Categories:

  • Earthing, lightning and surge protection > Earth rod/profiled earth rod
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 225,20 €

Unit Price: 45,04 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate15,935 kg CO2e / 1 Piece
Dimension1,5m
Dimension L1500 mm
External diameter25 mm
Length1500 mm
Lightning current carrying capacityH/100 kA
MaterialSteel
Profile typeRound D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)12,3 kA
SurfaceHot-dip galvanised
