219 20 BP CU 5000500 OBO BETTERMANN PICA EARTH 219/20 BP CU 1.5 M
219 20 BP CU
5000500
OBO BETTERMANN
5
PICA EARTH 219/20 BP CU 1.5 M

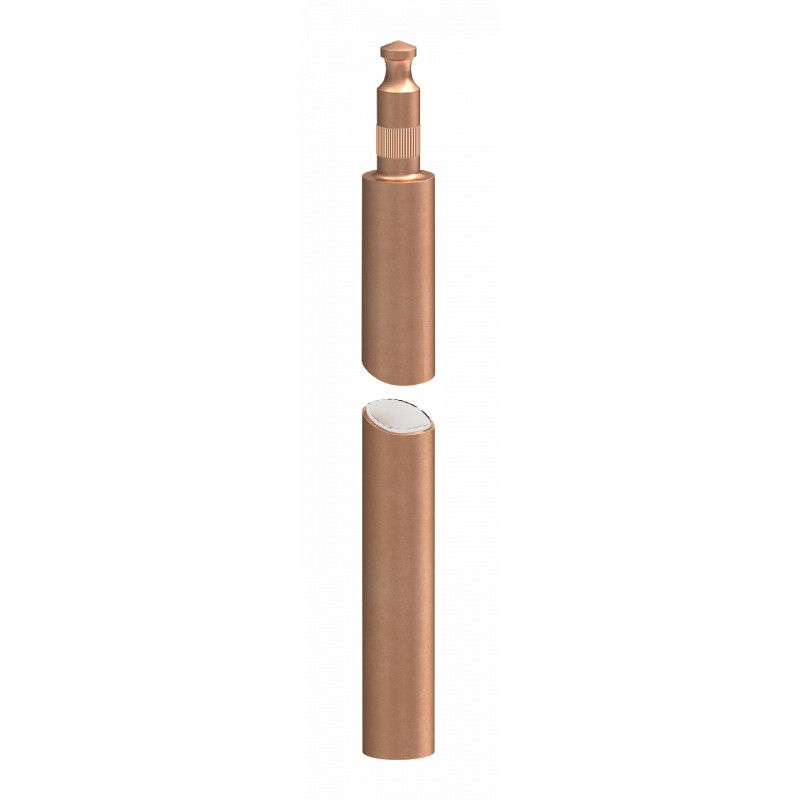

Grounding rod 219 20 BP CU with copper wrap 1.5m Steel, St copper-plated
Earth rod with copper sheath. • "BP" system (Bundespost)• Made of steel with a copper jacket of min. 0.25 mm• Very good contacting properties with soft metal inlay in the bore hole• With peg and bore for linking together• Tensile strength min. 600 N/mm²• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
Earthing, lightning and surge protection > Earth rod/profiled earth rod
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,093 kg CO2e / 1 Piece |
|---|---|
| Dimension | 1,5m |
| Dimension D | 20 mm |
| Dimension L | 1500 mm |
| External diameter | 20 mm |
| Length | 1500 mm |
| Lightning current carrying capacity | H/100 kA |
|---|---|
| Material | Steel |
| Profile type | Round D=20 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 7,9 kA |
| Surface | Copper-plated |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
| 5000500 OBO BETTERMANN PICA EARTH 219/20 BP CU 1.5 M | 74 Kbytes |
|
