OBO BETTERMANNKTS cable support systems - OBO BETTERMANNE M 10x40 3492920 OBO BETTERMANN ANCHOR AND IMPACT M 10x40

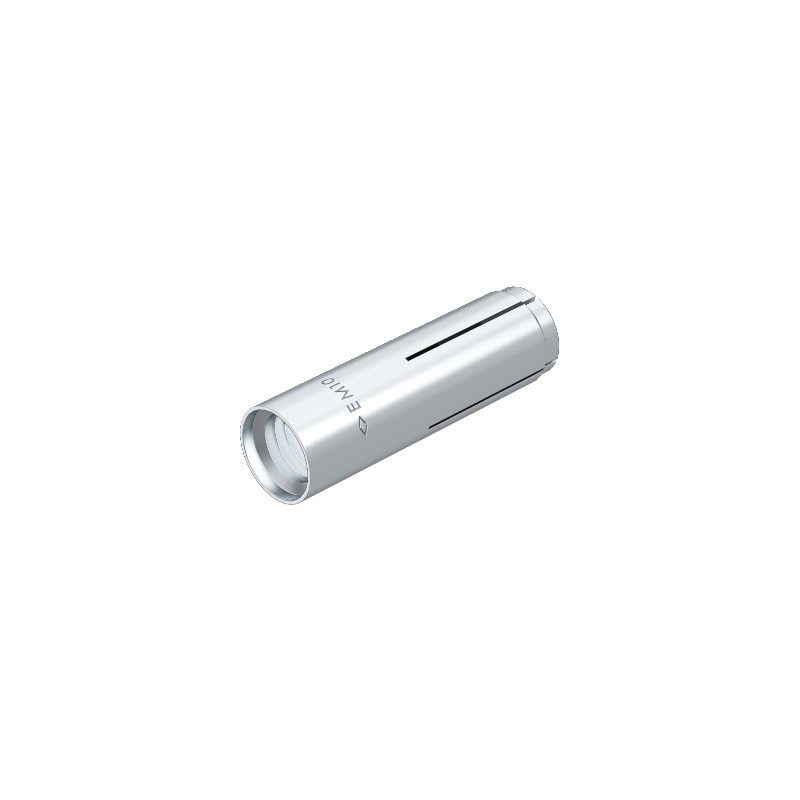

OBO BETTERMANN E M 10x40 3492920 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E M 10x40 3492920 OBO BETTERMANN ANCHOR AND IMPACT M 10x40

Reference: E M 10x40

Code: 3492920

Manufacturer: OBO BETTERMANN

Description:

ANCHOR AND IMPACT M 10x40
Impact anchor E E M 10x40, M10x40 Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042

Categories:

  • Fasteners > Hammer set anchor
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

The drop-in anchor And can be used for single fixings in non-cracked concrete as well as for multiple fixings in cracked concrete of non-load-bearing systems.
The setting tool is placed onto the anchor sleeve thereby creating a visible mark which confirms the correct installation. Through the controlled expansion, the necessary axial spacings and edge distances are decreased significantly.

ETIM for 3492920 Fixings and fasteners (EC000009)

Feature nameFastening provision (EF005644)
Feature valueOther
Feature nameMaterial sleeve (EF001260)
Feature valueSteel
Feature nameSurface protection (EF000139)
Feature valueGalvanic/electrolytic zinc plated
Feature nameThread size (metric) (EF003563)
Feature value10
Feature nameDrill hole diameter (EF004562)
Feature value12 mm
Feature nameLength (EF001438)
Feature value40 mm
Feature nameMin. drill hole depth (EF000384)
Feature value40 mm
Feature nameApp. load pull zone (EF005448)
Feature value2 kN
Feature nameWith approval (EF005449)
Feature valueYes
Feature nameSelf boring (EF005269)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
3492920 OBO BETTERMANN ANCHOR AND IMPACT M 10x40
50 Kbytes
PDF CATALOGUE KABELTRAGSYSTEME OBO EN
41 Mbytes
