205 DG L180 FT 5420024 OBO BETTERMANN Fixed grounding, shaft, and double thread, M10/M12, hot dip galvanized..
205 DG L180 FT
5420024
OBO BETTERMANN
10

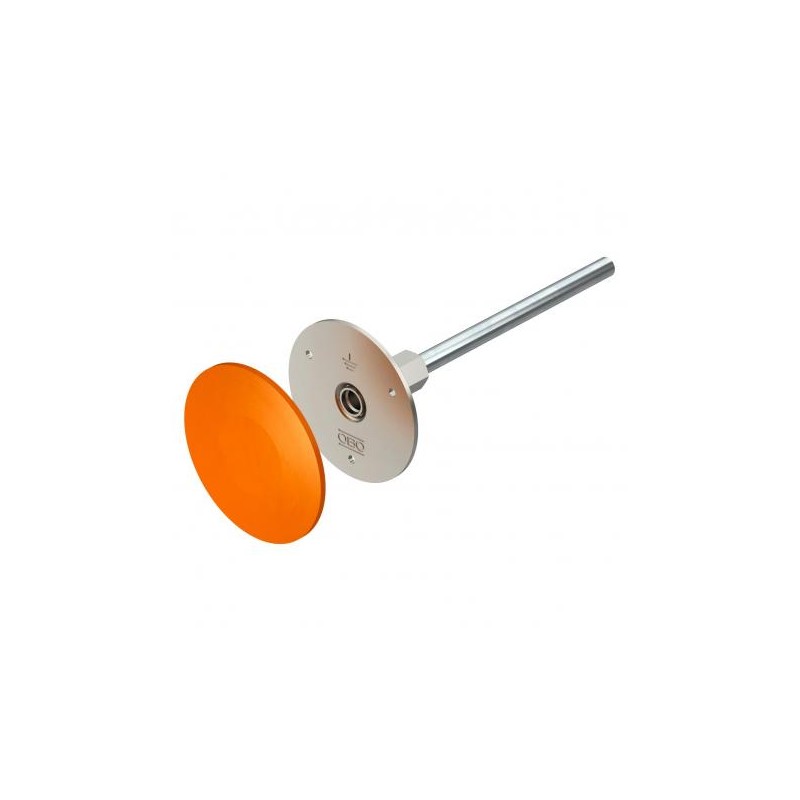

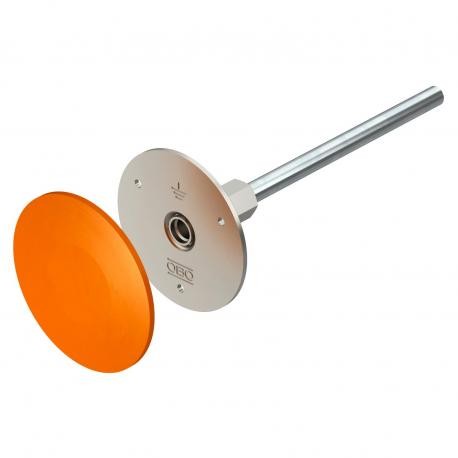

Fixed grounding, shaft, and double thread, M10/M12, hot dip galvanized steel, DIN EN ISO 1461
Fixed earthing terminal with connection bolt and double thread FT. • For connecting to earthing systems, conductors and reinforcements• Contact plate: Ø 79 mm from stainless steel, rustproof (V4A)• With M10 and M12 thread• Including plastic cover for easy installation• With connection bolt Ø 10 mm (FT)
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,2723 kg CO2e / 1 Piece |
|---|---|
| Diameter of the connection bolt | 10 mm |
| Diameter of the contact plate | 79 mm |
| Dimension | M10/M12 |
| Length | 180 mm |
| Lightning current carrying capacity | H/100 kA |
| Material | Steel |
|---|---|
| Material of the connection bolt | Steel, hot galvanised |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 4,9 kA |
| Surface | Hot-dip galvanised |
| Thread | M10/M12 |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Material connection lug (EF009563) | Steel |
| Connecting shaft (EF004166) | 180 mm |
| Diameter connection plate (EF004187) | 80 mm |
| Length (EF001438) | 180 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
