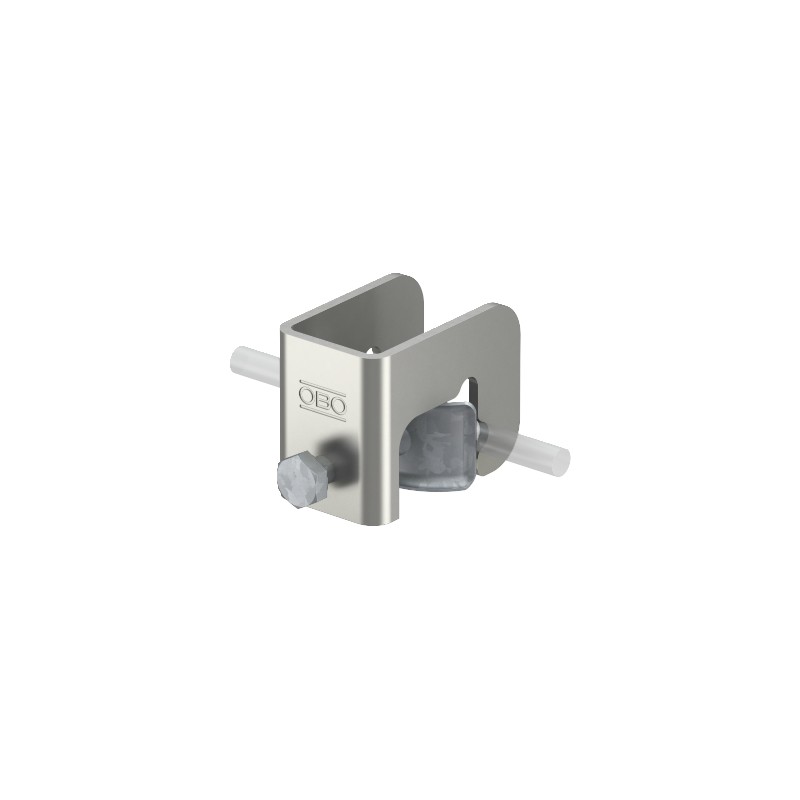

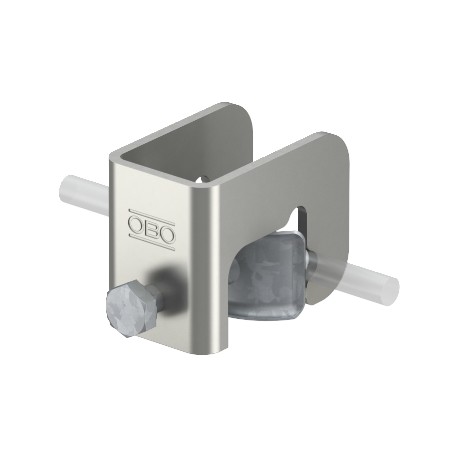

1814 ST D37 5014477 OBO BETTERMANN Connection terminal for large reinforced steels
1814 ST D37
5014477
OBO BETTERMANN
25
Connection terminal for large reinforced steels
VARIO Hug/lay/ground/press 1814 ST D37, for armor 16-37mm 61x46x88 Steel, St,
VARIO earthing terminal for large reinforced steels. • For armoured steel with 16-37 mm diameter and round conductors and flat conductors• Rapid installation using open slot and only one M10 bolt• Rotatable metal pressure trough for simple, safe mounting
Earthing, lightning and surge protection > Connector for lightning protection
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,0445 kg CO2e / 1 Piece |
|---|---|
| Dimension | 61x46x88 |
| Earthing connection diameter | 20–30 mm |
| Fit | FL30x3-4mm / Rd 10 x Rd 16-37 mm |
| Lightning current carrying capacity | H/100 kA |
| Material | Steel |
|---|---|
| Suitable for connection | Miscellaneous |
| Type of connector | Multipurpose connection clamp |
| Type of fastening screw | Hexagonal bolt |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
