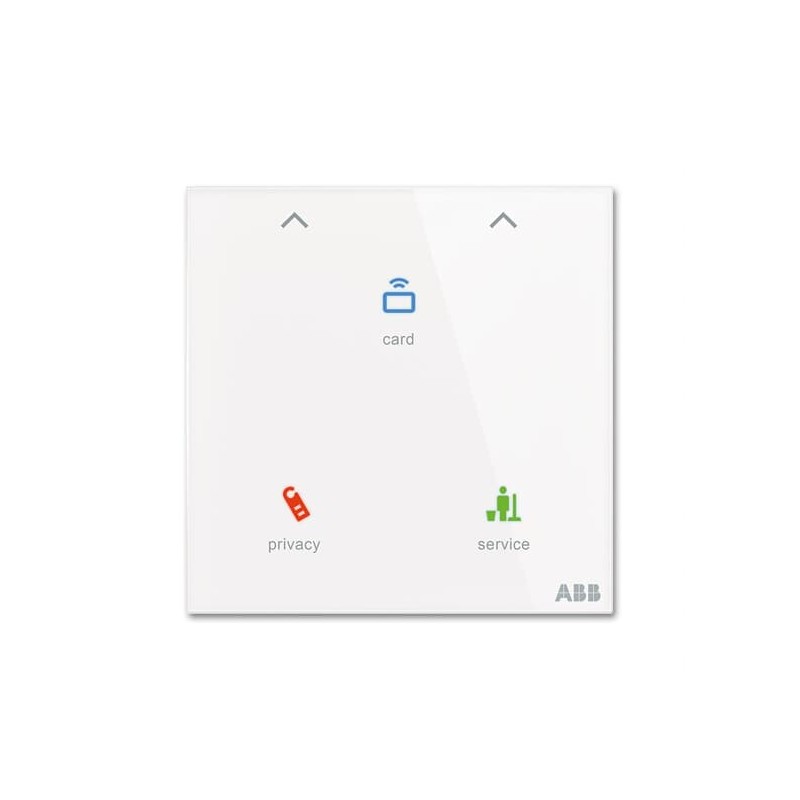

2CKA006300A1553 TKM/U.1.1-CG NIESSEN Card container, universal, FM
2CKA006300A1553
TKM/U.1.1-CG
NIESSEN
Card container, universal, FM
Card holder prog.
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush Mounted |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Number of Outputs | 1 |
| Number of Inputs | 1 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Terminal Type | Bus Connection |
| Electrical | |
| Rated Voltage (Ur) | 12 ... 24 V |
| Auxiliary Voltage AC/DC | 12 V |
| 24 V AC/DC | |
| Rated Current (In) | 4 A |
| Design | |
| Design Range | tacteo |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Glass |
| Dimensions | |
| Product Net Width | 86 mm |
| Product Net Height | 86 mm |
| Product Net Depth / Length | 34 mm |
| Product Net Weight | 104.4 g |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108471A6606 |
| Ordering | |
| E-Number (Finland) | 2814660 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E5464 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | DEBJE-2CKA006300A1553-ROHS |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0349 |
| Declaration of Conformity - UKCA | 2CKA400000E0239 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000782 - Access control unit for bus system |
| ETIM 10 | EC000782 - Access control unit for bus system |
| eClass | V11.0 : 27143141 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006300A1553 TKM/U.1.1-CG EN_2CKA006300A1553.pdf | 78 Kbytes |
|
