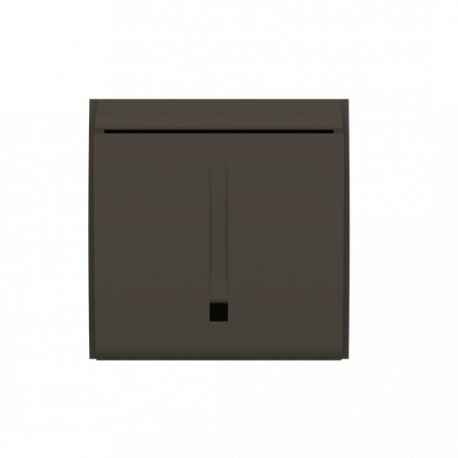

TH/U 1.1.ZA NIESSEN Mifare Card Container, Anthracite
2CSY249430R5200
TH/U 1.1.ZA
NIESSEN
Mifare Card Container, Anthracite
The "transponder holder" is a flush-mounting device for British Standard wall boxes, designed to realize access control systems with a communication support based on KNX bus. It is equipped with one relay (4A @24V AC/DC) and one binary input to be used for connecting external conventional push-button for switch, dimmer and shutter functionalities, or for example for connecting window contact or similar. The output can be programmed as "Linked to access control", receiving in this case switching commands from the device itself (according to card insertion/removal); or being a standard KNX Switch actuator output, able to be controlled by every KNX-standard devices. The white blinking LED placed on the front of the device allow you to monitor device operation and can be also switched ON/OFF in the proper color according to KNX. The transponder reader requires a 12...24 V AC/DC external power supply to ensure its operation even with bus voltage failure.
KNX-EIB
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- TH/U 1.1.ZA
- Product ID:
- 2CSY249430R5200
- EAN:
- 8012542652328
- Catalog Description:
- TH/U 1.1.ZA Card Holder Zenit Anthracite
- Long Description:
- The "transponder holder" is a flush-mounting device for British Standard wall boxes, designed to realize access control systems with a communication support based on KNX bus. It is equipped with one relay (4A @24V AC/DC) and one binary input to be used for connecting external conventional push-button for switch, dimmer and shutter functionalities, or for example for connecting window contact or similar. The output can be programmed as "Linked to access control", receiving in this case switching commands from the device itself (according to card insertion/removal); or being a standard KNX Switch actuator output, able to be controlled by every KNX-standard devices. The white blinking LED placed on the front of the device allow you to monitor device operation and can be also switched ON/OFF in the proper color according to KNX. The transponder reader requires a 12...24 V AC/DC external power supply to ensure its operation even with bus voltage failure.
Installation
- Instructions and Manuals:
- 2CKA001473B5157
Technical
- Data Sheet, Technical Information:
- 2CKA000173B5037
- Power Supply Type:
- Integrated
- Product Range:
- KNX
- Model Number:
- Card Holder
- Color:
- Anthracite
- Application Function:
- Hospitality
Environmental
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 44mm
- Product Net Height:
- 43mm
- Product Net Depth / Length:
- 44mm
- Product Net Weight:
- 0.018kg
- Built-In Depth (t2):
- 43 mm
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CSC500009D2701
Classifications
- ETIM 8:
- EC002971 - System device clinic-installation
- ETIM 9:
- EC002971 - System device clinic-installation
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365080
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2CSY249430R5200 TH/U 1.1.ZA EN_2CSY249430R5200.pdf | 225 Kbytes |
|
