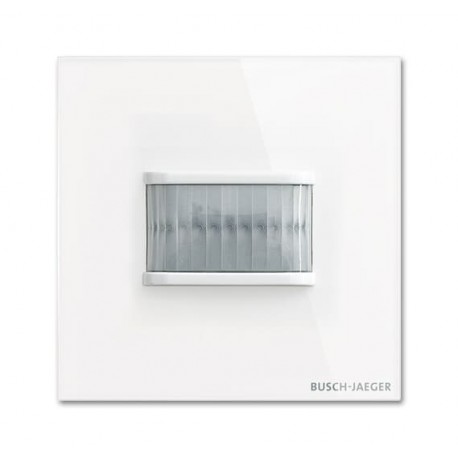

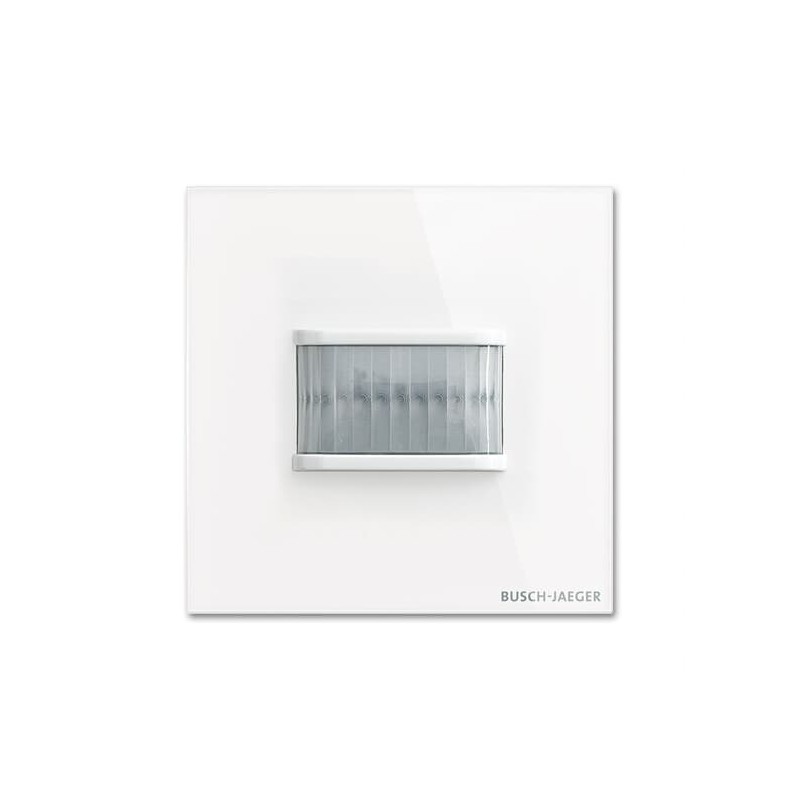

2CKA006300A1654 TBW/U-CG NIESSEN Detector movimiento 180, stardard, premium
2CKA006300A1654
TBW/U-CG
NIESSEN
Detector movimiento 180, stardard, premium
Motion detector 180, stardard, premium
Busch-Watchdog 180 ° ABB tacteo®
Domestic switching devices > Sensor element for movement sensor
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush-mounted |
| Mounting Position | vertical |
| Mounting Height | Optimum 1.1 ... 1.3 m |
| Modular Components Included | Complete Device |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Terminal Type | Bus Connection |
| Sensor Detection Range | 180 ° |
| Design | |
| Design Range | tacteo |
| Material | Plastic |
| Thermoplastic | |
| Dimensions | |
| Product Net Width | 86 mm |
| Product Net Height | 86 mm |
| Product Net Depth / Length | 37 mm |
| Product Net Weight | 95.8 g |
| Engineering | |
| EPLAN Data | 9AKK108464A1276 |
| Building Information Modeling – BIM | 9AKK108471A6607 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E9305 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E4197 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0383 |
| Declaration of Conformity - UKCA | 2CKA400000E0282 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000138 - Sensor element for movement sensor |
| ETIM 10 | EC000138 - Sensor element for movement sensor/presence detector |
| eClass | V11.0 : 27144008 |
| UNSPSC | 39122236 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006300A1654 TBW/U-CG EN_2CKA006300A1654.pdf | 78 Kbytes |
|
