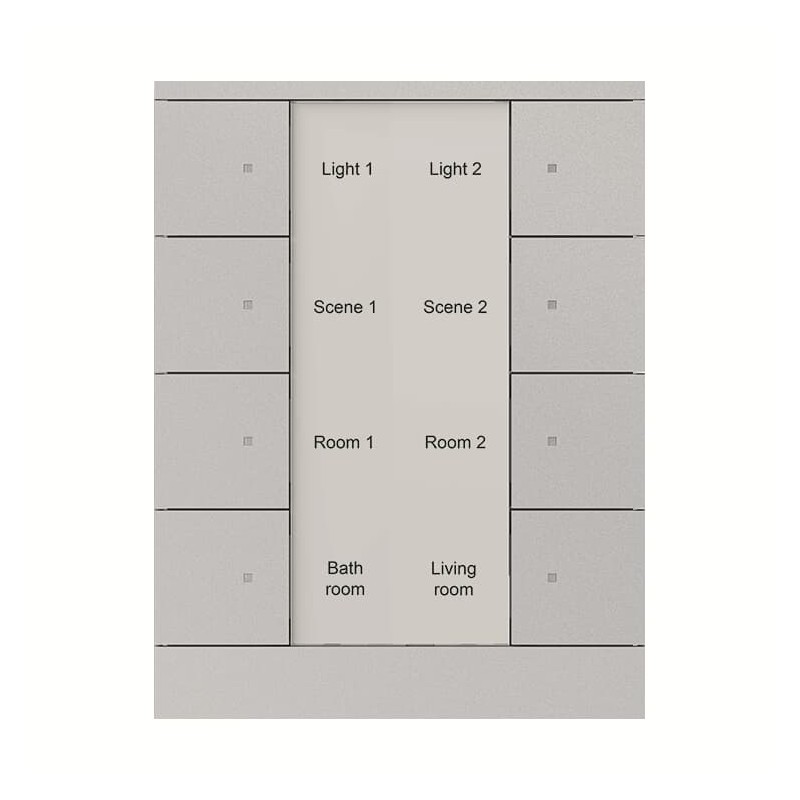

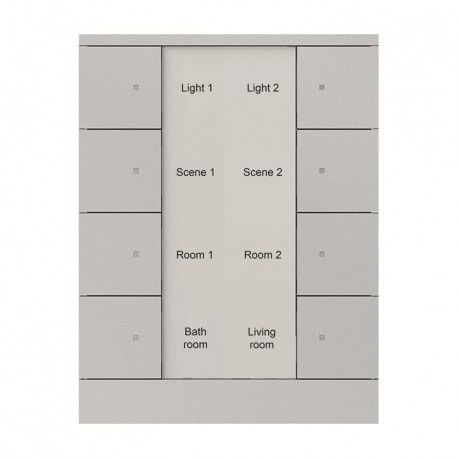

2CKA006330A0074 SB/U8.0.1-83 NIESSEN Pulsador Tenton, 8 canales, AL
2CKA006330A0074
SB/U8.0.1-83
NIESSEN
Pulsador Tenton, 8 canales, AL
Tenton pushbutton, 8 channels, AL
8f. Control element, aluminium silver
Installation bus systems > Touch sensor for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA000073BB9649 |
| Mounting Type | Flush-mounted |
| Modular Components Included | Complete Device |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Number of LEDs | 8 |
| Number of Buttons | 8 |
| Number of Actuation Points | 8 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Design | |
| Design Range | Tenton |
| Surface Finishing | Lacquered |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| RAL Number | Similar to RAL 9006 |
| Color | aluminium silver |
| Dimensions | |
| Product Net Width | 117.1 mm |
| Product Net Height | 90.1 mm |
| Product Net Depth / Length | 44.2 mm |
| Product Net Weight | 181.5 g |
| Built-In Depth (t2) | 30.7 mm |
| Engineering | |
| EPLAN Data | 9AKK108464A1343 |
| Ordering | |
| E-Number (Finland) | 2815685 |
| E-Number (Norway) | 4545365 |
| E-Number (Sweden) | 1740065 |
| E-Number (Switzerland) | 405020705 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E7885 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E4153 |
| Declaration of Conformity - UK-PSTI | 2CKA006330A0074 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000672 - Touch sensor for bus system |
| ETIM 10 | EC000672 - Touch sensor for bus system |
| eClass | V11.0 : 27143138 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006330A0074 SB/U8.0.1-83 EN_2CKA006330A0074.pdf | 92 Kbytes |
|
