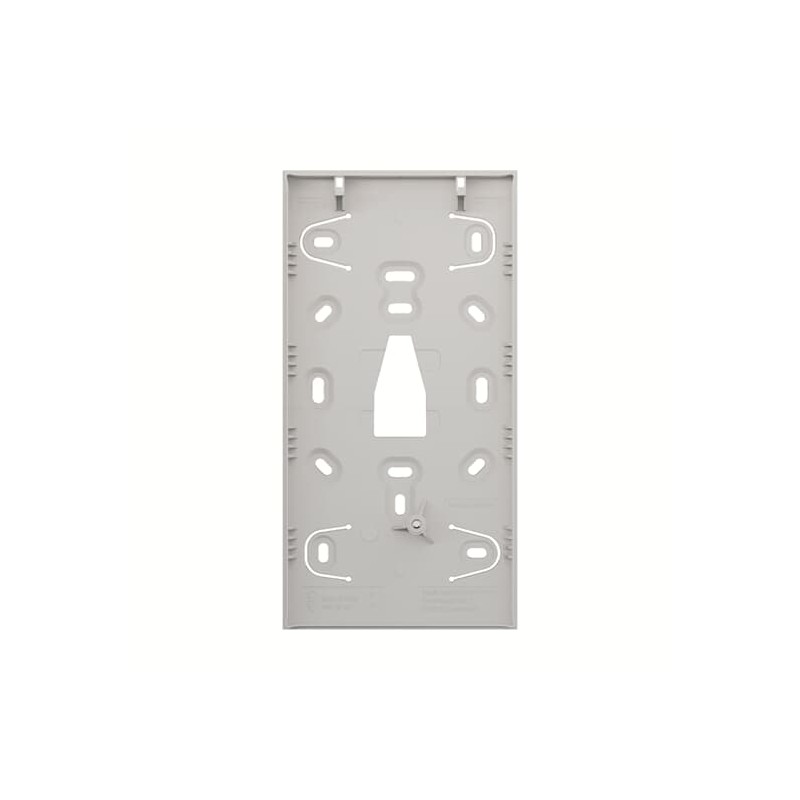

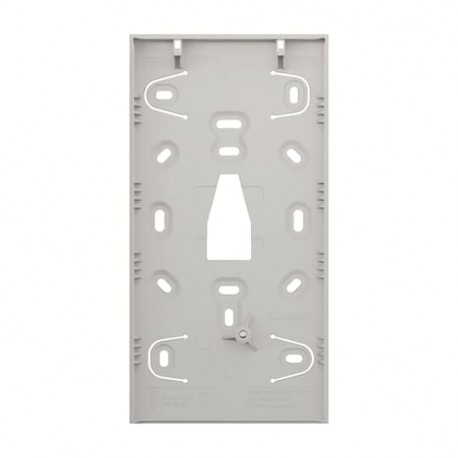

2CKA006330A0092 SAB/A.0.1-83 NIESSEN Marco superficie Tenton, 10-12 can. AL
2CKA006330A0092
SAB/A.0.1-83
NIESSEN
Marco superficie Tenton, 10-12 can. AL
Tenton surface frame, 10-12 can. TO THE
Surface box big, aluminium silver
Installation bus systems > Accessories for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush Mounted |
| Surface Mounted | |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Product Type | Surface box |
| Design | |
| Design Range | Tenton |
| Surface Finishing | Lacquered |
| Matt | |
| Material | Thermoplastic |
| Color | aluminium silver |
| Dimensions | |
| Product Net Width | 85 mm |
| Product Net Height | 166 mm |
| Product Net Depth / Length | 17.5 mm |
| Product Net Weight | 60.5 g |
| Ordering | |
| E-Number (Finland) | 2815688 |
| E-Number (Norway) | 4545374 |
| E-Number (Sweden) | 1740074 |
| E-Number (Switzerland) | 405993205 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E7894 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001583 - Accessories/spare parts for bus system |
| ETIM 10 | EC001583 - Accessories/spare parts for bus system |
| eClass | V11.0 : 27143192 |
| UNSPSC | 32151802 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006330A0092 SAB/A.0.1-83 EN_2CKA006330A0092.pdf | 93 Kbytes |
|
