NIESSENFlush-mounting series2CLA226210N1901 N2262.1 CV NIESSEN Interruptor temporizado triac CV

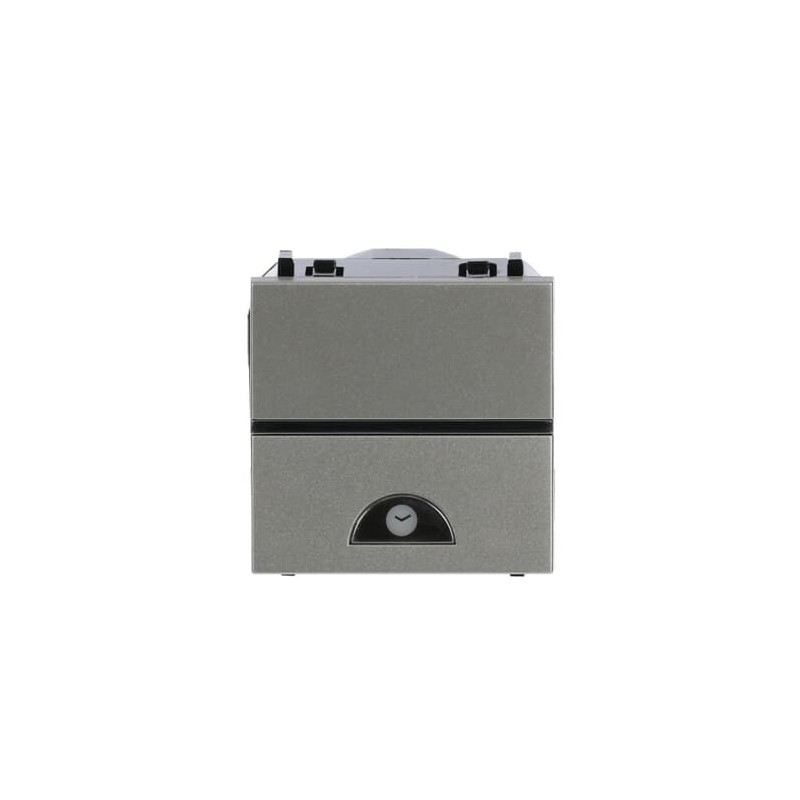

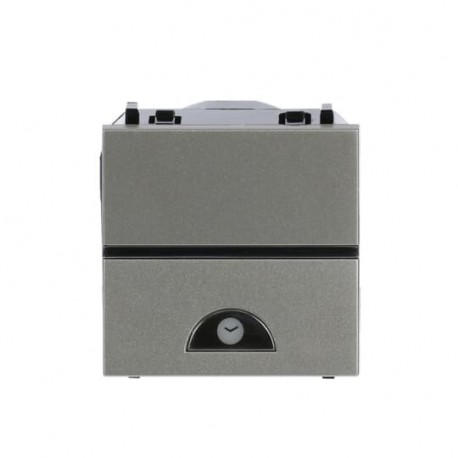

NIESSEN 2CLA226210N1901 N2262.1 CV - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA226210N1901 N2262.1 CV NIESSEN Interruptor temporizado triac CV

Reference: 2CLA226210N1901

Code: N2262.1 CV

Manufacturer: NIESSEN

Description:

Interruptor temporizado triac CV
Triac CV timed switch
Time switch insert/cover Electronic Champagne - Zenit

Categories:

  • Domestic switching devices > Time switch for domestic switching devices
  • NIESSEN > Flush-mounting series

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 59,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Installation
Instructions and Manuals2CLX816229A1001
Mounting TypeFlush Mounted
Type of FasteningEngage (Snap)
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
Minimum Switching Time0.17 minute [unit of time]
Time Range0.16 … 10 minute [unit of time]
Number of Batteries0
Electrical
Rated Voltage (Ur)230 V
Rated Current (In)2.1 A
Frequency (f)50 ... 50 Hz
Power Watt500 W
Number of Contacts NO1
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
ColorChampagne
Number of Modules2
Dimensions
Product Net Width44 mm
Product Net Height44 mm
Product Net Depth / Length42 mm
Product Net Weight69 g
Built-In Depth (t2)33.5 mm
Ordering
Replaced Product ID (OLD)2CLA226210N1902
Material Compliance
RoHS Declaration2CLC226210N1901
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK106930A5901
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC001594 - Time switch clock for domestic switching devices
ETIM 10EC001594 - Time switch clock for domestic switching devices
UNSPSC39122208

DATASHEET - PDF

Title
Size
Type
2CLA226210N1901 N2262.1 CV EN_2CLA226210N1901.pdf
143 Kbytes
PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN
88 Mbytes
PDF CATALOGUE NIESSEN EN
36 Mbytes
