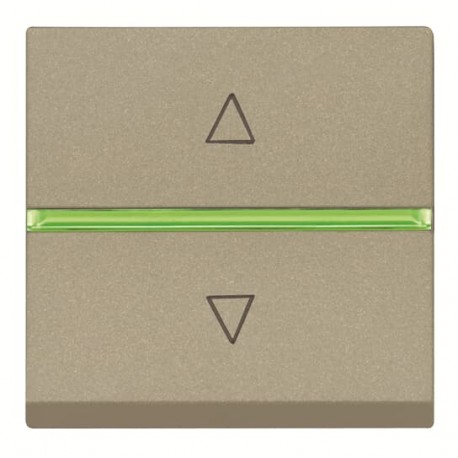

2CLA226120N1901 N2261.2 CV NIESSEN Interruptor rele de persianas CV
2CLA226120N1901
N2261.2 CV
NIESSEN
Interruptor rele de persianas CV
CV blind relay switch
Color: Champagne.Rated voltage: 110 - 250 Vac; 50/60 HzRated current: 700VA@230Vac / 350VA@127VacDirect controlFunctions: - PERS: standard blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations - LAM: venetian type blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations- Centralization (CEN): one N2261.2 can control all the N2261.2 centrallySize: 2 modules.
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- N2261.2 CV
- Product ID:
- 2CLA226120N1901
- EAN:
- 8427238093192
- Catalog Description:
- Blind control switch 1-pole push button Champagne - Zenit
- Long Description:
- Color: Champagne.
Rated voltage: 110 - 250 Vac; 50/60 Hz
Rated current: 700VA@230Vac / 350VA@127Vac
Direct control
Functions:
- PERS: standard blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations
- LAM: venetian type blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations
- Centralization (CEN): one N2261.2 can control all the N2261.2 centrally
Size: 2 modules.
Installation
- Instructions and Manuals:
- 2CLX226129N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Rated Voltage (Ur):
- 230 V
- Rated Current (In):
- 16 A
- Number of Poles:
- 1
- Number of Buttons:
- 2
- Design Range:
- Zenit
- Actuator Type:
- Rocker
- Connection Type:
- Plug Clamp
- Mounting Type:
- Flush Mounted
- Type of Fastening:
- Engage (Snap)
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Label Space Provided:
- No
- Model Number:
- 1-pole push button
- Color:
- Champagne
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC226120N1901
- REACH Declaration:
- 9AKK108467A7464
- Environmental Information:
- 9AKK108467A3734
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 44mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 0.085kg
Ordering
- Replaced Product ID (OLD):
- 2CLA226120N1902
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A5901
Classifications
- ETIM 8:
- EC000044 - Venetian blind switch/-push button
- ETIM 9:
- EC000044 - Window blind switch
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365080
- UNSPSC:
- 39122226
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA226120N1901 N2261.2 CV EN_2CLA226120N1901.pdf | 91 Kbytes |
|
