NIESSENFlush-mounting series2CLA225070N1901 N2250.7 CV NIESSEN Final TV socket type M CV

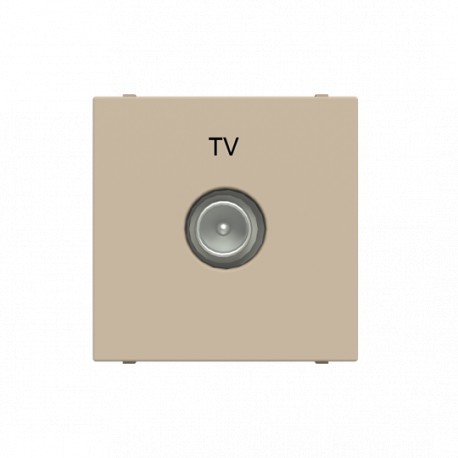

NIESSEN 2CLA225070N1901 N2250.7 CV - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA225070N1901 N2250.7 CV NIESSEN Final TV socket type M CV

Reference: 2CLA225070N1901

Code: N2250.7 CV

Manufacturer: NIESSEN

Description:

Toma TV final tipo M CV
Final TV socket type M CV
Color: Champagne.Single TV outlet - Dead-endM type - 9,52mm maleFor 75Ω impedance coaxial cableAvoid small bending radiusFrequency range: 5 - 2.400 MhzConnection loss: 1 dBIsolation: >16 dBReturn loss: >7,6 dBDC path (Vdc / mA / Tono): 34 max. / 500 max. / 22kHz - DiSEqCSize: 2 modules.

Categories:

  • Domestic switching devices > Insert/cover for communication technology
  • NIESSEN > Flush-mounting series

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 172,69 €

Unit Price: 17,269 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Extended Product Type:
    N2250.7 CV
  • Product ID:
    2CLA225070N1901
  • EAN:
    8427238138169
  • Catalog Description:
    TV outlet SAT 1 gang Champagne - Zenit
  • Long Description:
    Color: Champagne.
    Single TV outlet - Dead-end
    M type - 9,52mm male
    For 75Ω impedance coaxial cable
    Avoid small bending radius
    Frequency range: 5 - 2.400 Mhz
    Connection loss: 1 dB
    Isolation: >16 dB
    Return loss: >7,6 dB
    DC path (Vdc / mA / Tono): 34 max. / 500 max. / 22kHz - DiSEqC
    Size: 2 modules.

Installation

Technical

  • Data Sheet, Technical Information:
    9AKK10103A5108
  • Application:
    SAT
  • Design Range:
    Zenit
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Engage (Snap)
  • Type of Indicator:
    Without indication field
  • Outlet Orientation:
    Straight
  • Surface Finishing:
    Decor
    Matt
  • Material:
    Plastic
    Thermoplastic
  • Color:
    Champagne
  • Number of Batteries:
    0

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CLC225070N1901
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    44mm
  • Product Net Height:
    44mm
  • Product Net Weight:
    0.046kg

Ordering

  • Replaced Product ID (OLD):
    2CLA225070N1902

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000018 - Insert/cover for communication technology
  • ETIM 9:
    EC000018 - Insert/cover for communication technology
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85369010
