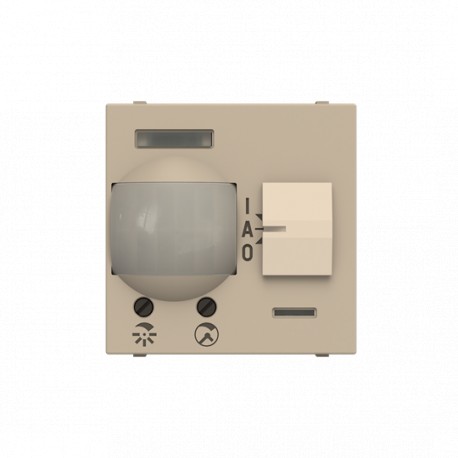

2CLA224100N1901 N2241 CV NIESSEN Modular motion detector CV
2CLA224100N1901
N2241 CV
NIESSEN
Modular motion detector CV
Color: Champagne.Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 HzOutputs: 1 Normally Open (NO). Potential freeMax. power: - Incandescent: 1.800W @230Vac / 1.000W @127Vac - Halogen with electronic o ferromagnetic transformer: 750VA @230Vac / 400VA @127Vac - Fluorescent lamps or motors: 400VA @230Vac / 200VA @127Vac For automatic switching of devices dependent on motion and brightness.With integrated selector switch for ON-AUTOMATIC-OFF in the front side.Switch-off delay: 10 sec to 10 min or short-time pulse 1 sec adjustable (from the front side).Detection range: 5 m radiousAdjustable light set point level for activation (from the front side).Detection angle: 110 °Mounting height: 1,2 mAuxiliary control with N2X04.X push-buttonsTemperature range (Device): -10 °C to 40 °CSize: 2 modules.
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- N2241 CV
- Product ID:
- 2CLA224100N1901
- EAN:
- 8427238092959
- Catalog Description:
- 110° motion sensor - 2M - Champagne Movement sensor Champagne - Zenit
- Long Description:
- Color: Champagne.
Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 Hz
Outputs: 1 Normally Open (NO). Potential free
Max. power:
- Incandescent: 1.800W @230Vac / 1.000W @127Vac
- Halogen with electronic o ferromagnetic transformer: 750VA @230Vac / 400VA @127Vac
- Fluorescent lamps or motors: 400VA @230Vac / 200VA @127Vac
For automatic switching of devices dependent on motion and brightness.
With integrated selector switch for ON-AUTOMATIC-OFF in the front side.
Switch-off delay: 10 sec to 10 min or short-time pulse 1 sec adjustable (from the front side).
Detection range: 5 m radious
Adjustable light set point level for activation (from the front side).
Detection angle: 110 °
Mounting height: 1,2 m
Auxiliary control with N2X04.X push-buttons
Temperature range (Device): -10 °C to 40 °C
Size: 2 modules.
Installation
- Instructions and Manuals:
- 2CLX224109N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Rated Voltage (Ur):
- 230 V
- Input Voltage Type:
- AC
- Current Range:
- Minimum 3 A
Maximum 8 A
- Maximum Control Current DC:
- 1800 mA
- Frequency (f):
- 50...60 Hz
- Maximum Switching Power:
- 1800 W
- Measuring Range:
- Diameter Detection range on floor 5 m
- Number of Switching Zones:
- 3
- Design Range:
- Zenit
- Delay Time (τ):
- On 10 second [unit of time]
Off 600 second [unit of time]
- Minimum Switching Time:
- Switch-On 10 second [unit of time]
- Connection Type:
- Screw
- Mounting Type:
- Flush Mounted
- Sensor Type:
- Passive infrared
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Illuminance:
- 3...1000 lx
- Model Number:
- Movement sensor
- RAL Number:
- RAL 9010 - Pure White
- Color:
- Champagne
- Number of Batteries:
- 0
- Application Function:
- Electrical Load and Light Control
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC224100N1901
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 44mm
- Product Net Height:
- 44mm
- Product Net Depth / Length:
- 40mm
- Product Net Weight:
- 0.108kg
- Built-In Depth (t2):
- 32 mm
Ordering
- Replaced Product ID (OLD):
- 2CLA224100N1902
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A2195
Classifications
- ETIM 8:
- EC000133 - Movement sensor complete
- ETIM 9:
- EC000133 - Movement sensor/presence detector complete
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365080
- UNSPSC:
- 39122236
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA224100N1901 N2241 CV EN_2CLA224100N1901.pdf | 274 Kbytes |
|
