NIESSENFlush-mounting series2CLA221450N1901 N2214.5 CV NIESSEN Interrup. tarjeta temporiz. CV

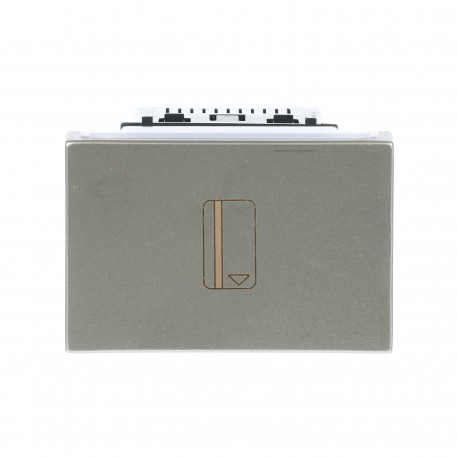

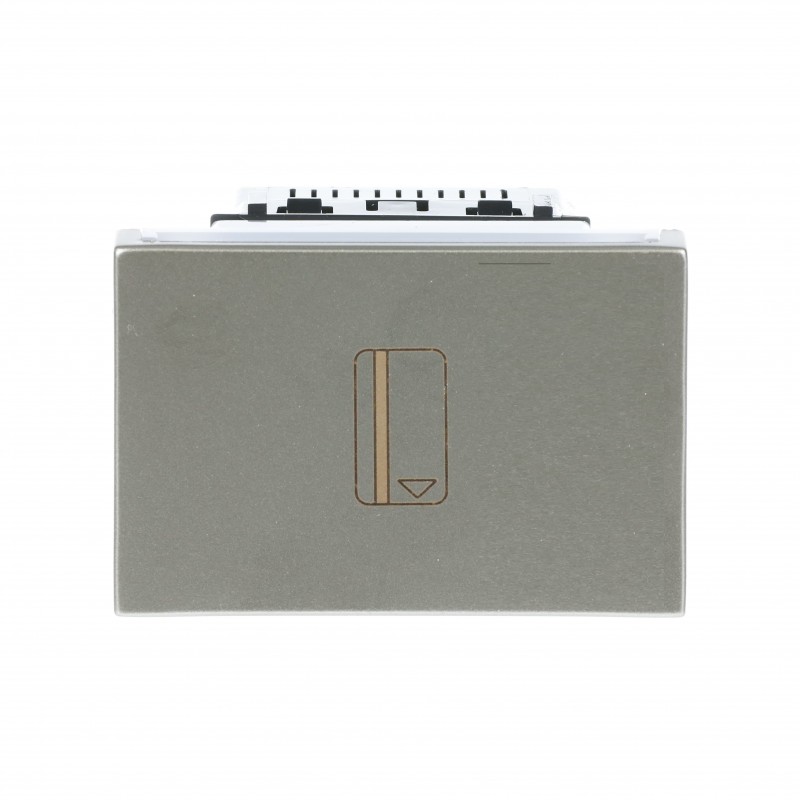

NIESSEN 2CLA221450N1901 N2214.5 CV - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA221450N1901 N2214.5 CV NIESSEN Interrup. tarjeta temporiz. CV

Reference: 2CLA221450N1901

Code: N2214.5 CV

Manufacturer: NIESSEN

Description:

Interrup. tarjeta temporiz. CV
Interrupt. time card. CV
Card switch insert/cover Champagne - Zenit

Categories:

  • Domestic switching devices > Electronic switch
  • NIESSEN > Flush-mounting series

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 64,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Installation
Instructions and Manuals2CLX811459A1001
Mounting TypeFlush Mounted
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Technical
Data Sheet, Technical Information9AKK10103A5108
Number of Batteries0
Electrical
Rated Voltage (Ur)230 V
Rated Current (In)16 A
Frequency (f)50...60 Hz
Minimum Switching Capacity3000...3000 W
Load TypeUniversal
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
ColorChampagne
Dimensions
Product Net Width44 mm
Product Net Height44 mm
Product Net Weight83 g
Ordering
Replaced Product ID (OLD)2CLA221450N1902
Material Compliance
RoHS Declaration2CLC221450N1901
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A7464
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP15c7e051-1c2a-46a7-aa26-7a967f0b91e8 Spain
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK106930A5901
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC001588 - Electronic switch
ETIM 10EC001588 - Electronic switch
UNSPSC39122244

DATASHEET - PDF

Title
Size
Type
2CLA221450N1901 N2214.5 CV EN_2CLA221450N1901.pdf
117 Kbytes
PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN
88 Mbytes
PDF CATALOGUE NIESSEN EN
36 Mbytes
