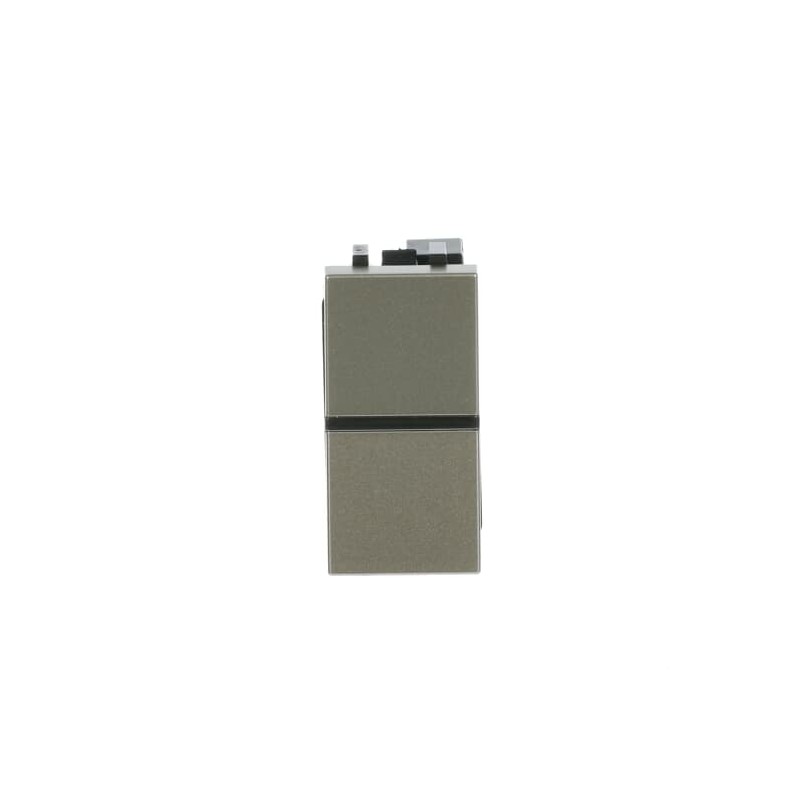

2CLA210470N1901 N2104.7 CV NIESSEN Pulsador sin grabado CV
2CLA210470N1901
N2104.7 CV
NIESSEN
20
Pulsador sin grabado CV
Button without engraving CV
Insert/cover Without imprint Push button, Single push button 1P 1NO 0NC 1CO Champagne - Zenit
Domestic switching devices > Push-switch button
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Contacts Configuration | 1 NO, 0 NC |
| Number of Poles | 1P |
| Number of Rocker Switches | 1 |
| Operating Principle | Mechanical |
| Actuator Type | Push button |
| Connection Type | Screwless |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Number of Contacts CO | 1 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Champagne |
| Number of Modules | 1 |
| Dimensions | |
| Product Net Width | 22 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 25 mm |
| Product Net Weight | 19 g |
| Built-In Depth (t2) | 25 mm |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA210470N1902 |
| Material Compliance | |
| RoHS Declaration | 2CLC210470N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A5900 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000029 - Push button |
| ETIM 10 | EC000029 - Push button |
| UNSPSC | 39122226 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA210470N1901 N2104.7 CV EN_2CLA210470N1901.pdf | 111 Kbytes |
|
