NIESSENFlush-mounting series2CLA210450N1901 N2104.5 CV NIESSEN Pulsador c/piloto control CV

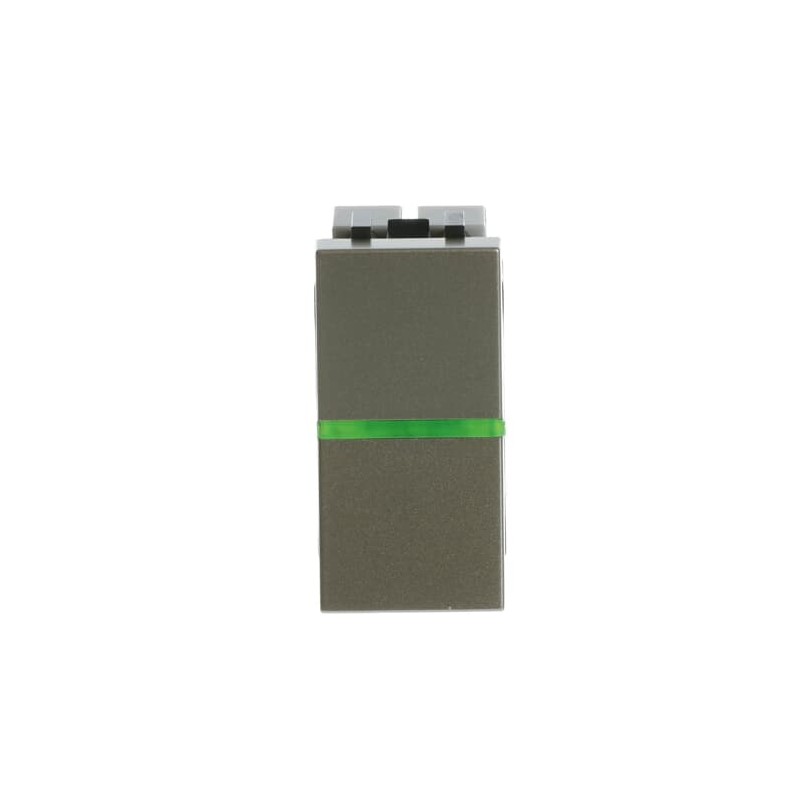

NIESSEN 2CLA210450N1901 N2104.5 CV - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA210450N1901 N2104.5 CV NIESSEN Pulsador c/piloto control CV

Reference: 2CLA210450N1901

Code: N2104.5 CV

Manufacturer: NIESSEN

Description:

Pulsador c/piloto control CV
Pushbutton w/pilot control CV
Color: Champagne.Rated voltage: 110 - 250 Vac Rated current: 16 A Screwless terminals With neutral (N) terminal (3 wires) Included: indicator LED lamp N2192 RJ (230 Vac) Size: 1 module.

Categories:

  • NIESSEN > Flush-mounting series

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    N2104.5 CV
  • Product ID:
    2CLA210450N1901
  • EAN:
    8427238093154
  • Catalog Description:
    Pushbutton None Single push button Rocker 1 pole, 1NO 0NC 1CO Champagne - Zenit
  • Long Description:
    Color: Champagne.
    Rated voltage: 110 - 250 Vac
    Rated current: 16 A
    Screwless terminals
    With neutral (N) terminal (3 wires)
    Included: indicator LED lamp N2192 RJ (230 Vac)

    Size: 1 module.

Installation

Technical

  • Data Sheet, Technical Information:
    9AKK10103A5108
  • Rated Voltage (Ur):
    250 V
  • Rated Current (In):
    16 A
  • Contacts Configuration:
    1 NO, 0 NC
  • Number of Poles:
    1
  • Number of Contacts CO:
    1
  • Number of Contacts NC:
    0
  • Number of Contacts NO:
    1
  • Number of Rocker Switches:
    1
  • Design Range:
    Zenit
  • Actuator Type:
    Rocker
  • Connection Type:
    Screwless
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Engage (Snap)
  • Surface Finishing:
    Decor
    Glossy
  • Material:
    Plastic
    Thermoplastic
  • Legend:
    None
  • Model Number:
    Single push button
  • Color:
    Champagne
  • Number of Batteries:
    0

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CLC210450N1901
  • REACH Declaration:
    9AKK108467A7464
  • Environmental Information:
    9AKK108467A3734
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    22mm
  • Product Net Height:
    44mm
  • Product Net Depth / Length:
    25mm
  • Product Net Weight:
    0.03kg
  • Built-In Depth (t2):
    25 mm

Ordering

  • Replaced Product ID (OLD):
    2CLA210450N1902

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000029 - Push-switch button
  • ETIM 9:
    EC000029 - Push button
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85365080
  • UNSPSC:
    39122226

DATASHEET - PDF

Title
Size
Type
2CLA210450N1901 N2104.5 CV EN_2CLA210450N1901.pdf
112 Kbytes
PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN
88 Mbytes
PDF CATALOGUE NIESSEN EN
36 Mbytes
