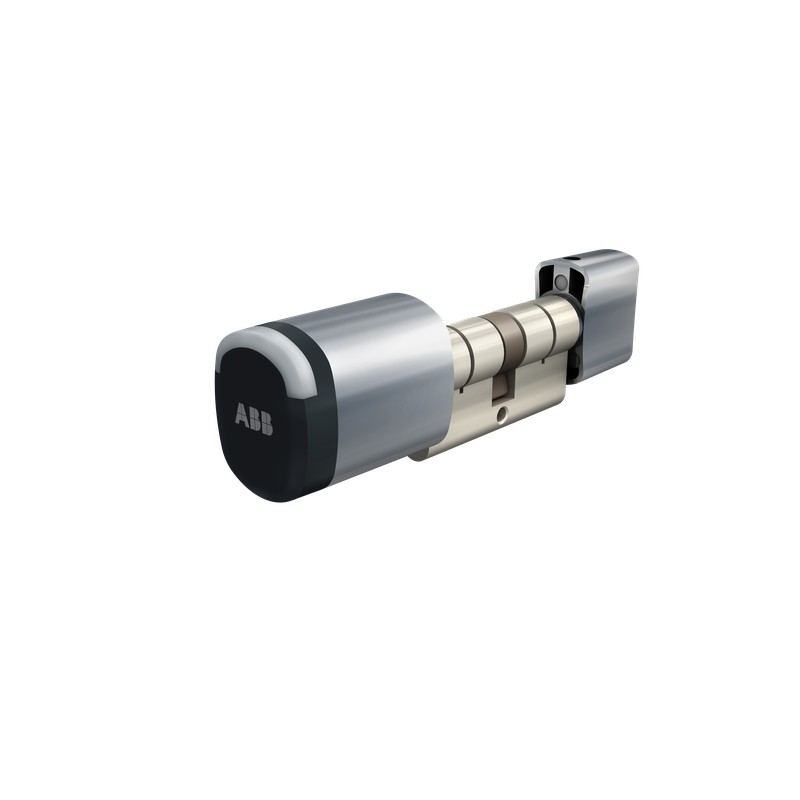

D01EU303003TF1-04 NIESSEN Full cylinder 30/30 T EU
D01EU303003TF1-04
NIESSEN
Full cylinder 30/30 T EU
Electronic Cylinder Lock 30/30 mm
DES
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 9AKK107992A7754 |
| Environmental | |
| Ambient Air Temperature | Operation -35 ... +55 °C |
| Degree of Protection | IP66 |
| Technical | |
| Product Range | AccessControl |
| Transmission Standard | Bluetooth |
| Type of Indicator | Light signal |
| Number of Batteries | 4 |
| Battery Size | LR1 |
| Battery Chemical Composition | Alkaline |
| Battery Integration Type | Replaceable Non-Rechargeable |
| Design | |
| Material | Metal |
| Color | black / satin chrome |
| Dimensions | |
| Product Net Width | 65 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 185 mm |
| Product Net Weight | 0.51 kg |
| Size | 30/30 mm |
| Thickness | Inside Length 30 mm |
| Outside Length 30 mm | |
| Material Compliance | |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Portable |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E3788 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001770 - Access control system |
| ETIM 10 | EC001770 - Access control system component |
| eClass | V11.0 : 27390190 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| D01EU303003TF1-04 D01EU303003TF1-04 EN_D01EU303003TF1-04.pdf | 172 Kbytes |
|
