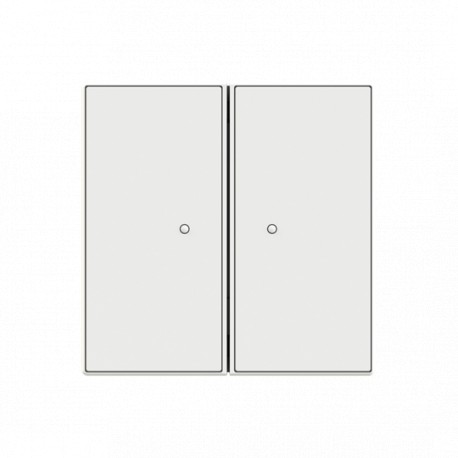

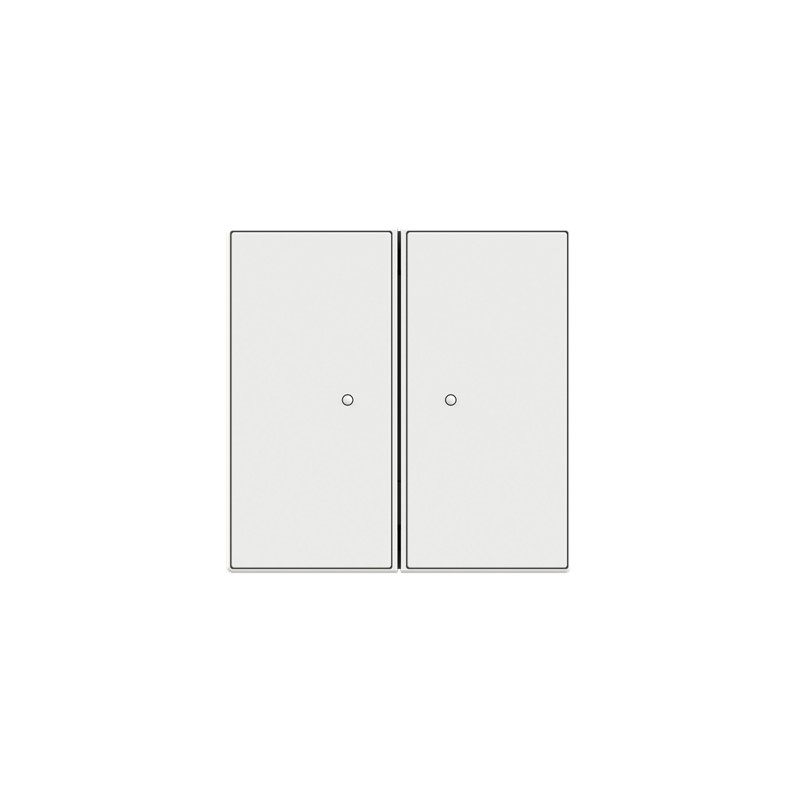

2CLA853120A4101 8531.2 BB NIESSEN Wireless key transmitter 2 channels BB View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA853120A4101 8531.2 BB NIESSEN Wireless key transmitter 2 channels BB

2CLA853120A4101

8531.2 BB

NIESSEN

Wireless key transmitter 2 channels BB

Color: Soft White Basic .2-gang wall-mounted transmitter independent of mainspower supply.For switching and dimming.For controlling blinds and light scenes.2 radio channel can be operated or up to 2 light scenes can be called up.For wireless pill type actuators: 8130.4, 8130.5, 8130.7 & 8130.6.Send frequency: 868 MHz.Free-field range: approx. 100 m.Power supply: lithium button cell battery Type CR2032.Battery service life: typically 5 years, therefore practically maintenance-free.Rated voltage: 3 Vdc.Automatic monitoring of battery life.Including fixing plate for mounting on smooth walls or on switch boxes.Control element: Switch contacts top/bottom.Display elements: LED to indicate the transmission.Temperature range (Device): -5 °C to 45 °C.Battery included in delivery.

More details


Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



  • Extended Product Type:
    8531.2 BB
  • Product ID:
    2CLA853120A4101
  • EAN:
    8427238239774
  • Catalog Description:
    RF switch White - Sky Niessen
  • Long Description:
    Color: Soft White Basic .
    2-gang wall-mounted transmitter independent of mains
    power supply.
    For switching and dimming.
    For controlling blinds and light scenes.
    2 radio channel can be operated or up to 2 light scenes can be called up.
    For wireless pill type actuators: 8130.4, 8130.5, 8130.7 & 8130.6.
    Send frequency: 868 MHz.
    Free-field range: approx. 100 m.
    Power supply: lithium button cell battery Type CR2032.
    Battery service life: typically 5 years, therefore practically maintenance-free.
    Rated voltage: 3 Vdc.
    Automatic monitoring of battery life.
    Including fixing plate for mounting on smooth walls or on switch boxes.
    Control element: Switch contacts top/bottom.
    Display elements: LED to indicate the transmission.
    Temperature range (Device): -5 °C to 45 °C.
    Battery included in delivery.

Installation

Popular Downloads

Technical

  • Data Sheet, Technical Information:
    9AKK107046A0356
  • Design Range:
    Sky Niessen
  • Surface Finishing:
    Untreated
    Matt
  • Material:
    Plastic
    Thermoplastic
  • Color:
    White
  • Number of Batteries:
    0
  • Application Function:
    Electrical Load and Light Control

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Environmental Information:
    9AKK108466A4732
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    0.094m
  • Product Net Height:
    0.038m
  • Product Net Depth / Length:
    0.110m
  • Product Net Weight:
    0.025kg

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000257 - Transmitter/Remote control for domestic switching devices
  • ETIM 9:
    EC000257 - Transmitter/Remote control for domestic switching devices
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85389099
  • UNSPSC:
    39121704
