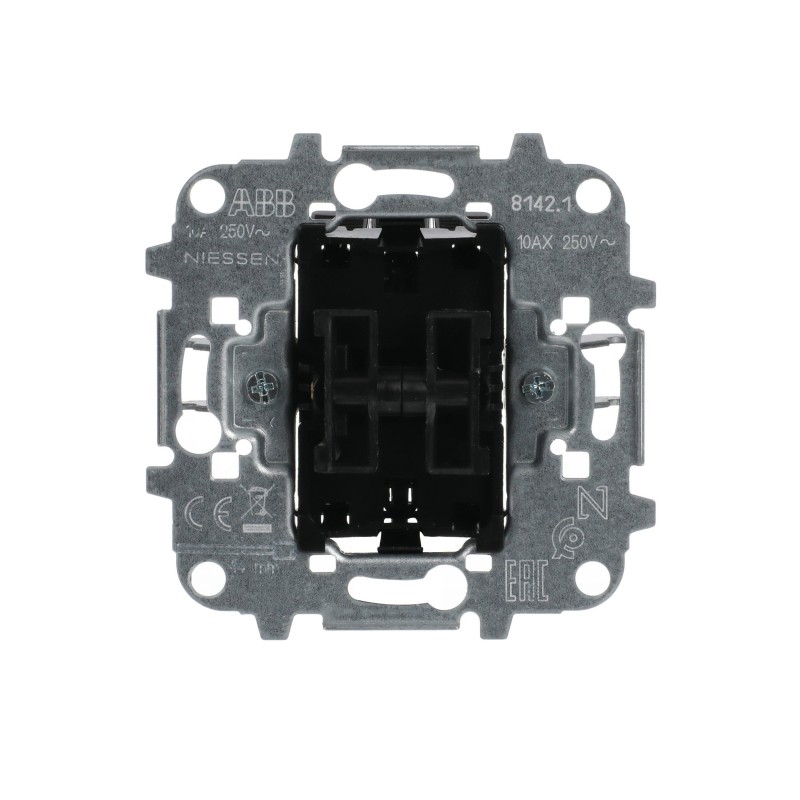

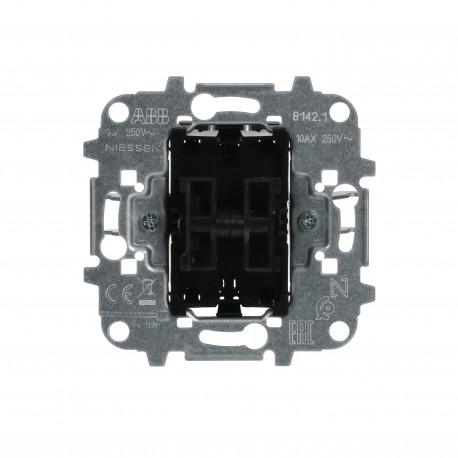

2CLA814210A1001 8142.1 NIESSEN Pulsador + conmutador
2CLA814210A1001
8142.1
NIESSEN
10
Pulsador + conmutador
Pushbutton + switch
Insert Alternating-/alternating switch for 1 rocker, 10 A
Domestic switching devices > Installation switch
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX810109A1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Number of Rocker Switches | 1 |
| Wiring Configuration | Alternating-/alternating switch |
| Actuator Type | Rocker/button |
| Connection Type | Push-In |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 10 A |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Alter Vega | |
| Vega | |
| Vega Waterproof | |
| Arco | |
| Material | Plastic |
| Dimensions | |
| Product Net Width | 0.149 m |
| Product Net Height | 0.225 m |
| Product Net Depth / Length | 0.225 m |
| Product Net Weight | 0.066 kg |
| Material Compliance | |
| RoHS Declaration | 2CLC814210A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 3912afc4-d4c7-40cd-bbec-a99bbac0bebc Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A1744 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001590 - Installation switch |
| ETIM 10 | EC001590 - Installation switch |
| UNSPSC | 39122200 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA814210A1001 8142.1 EN_2CLA814210A1001.pdf | 143 Kbytes |
|
