> NIESSEN>Home Automation>2CKA006220A0231 MSA-F-1.1.PB.1 NIESSEN Det.mov./Actuator 1-channel
Previous Product Next Product

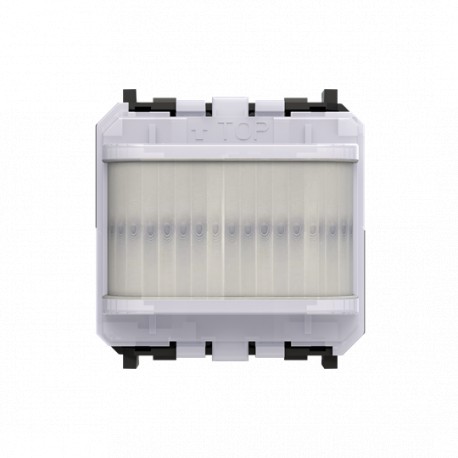

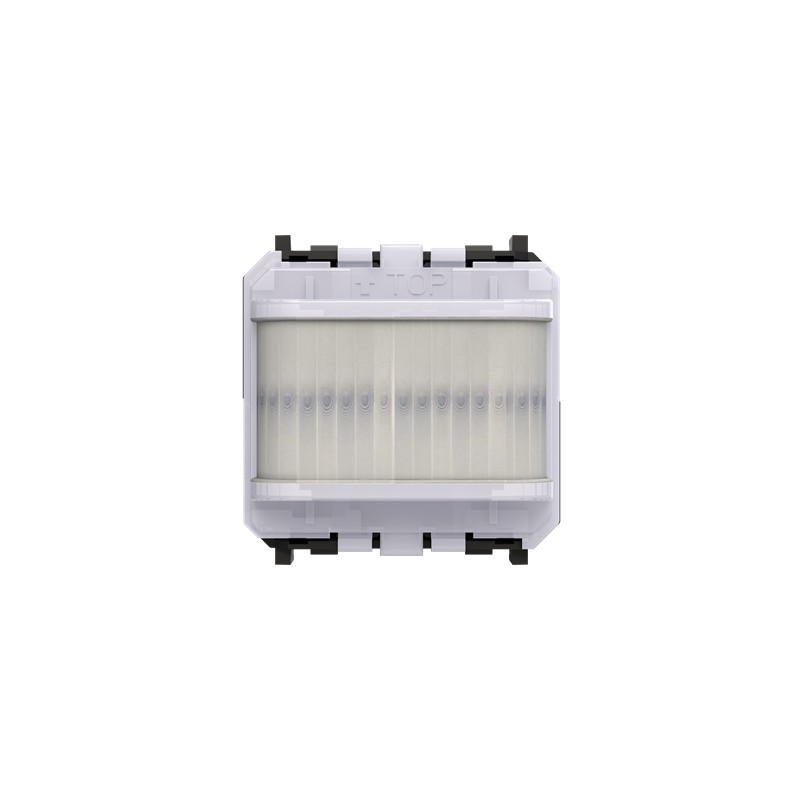

2CKA006220A0231 MSA-F-1.1.PB.1 NIESSEN Det.mov./Actuator 1-channel View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CKA006220A0231 MSA-F-1.1.PB.1 NIESSEN Det.mov./Actuator 1-channel

2CKA006220A0231

MSA-F-1.1.PB.1

NIESSEN

Det.mov./Actuator 1-channel

Det.mov./1 channel actuator, 44x44

With select lens for detection with animal access. For automatic switching of ABB-free@home® actuators dependent on movement and brightness. Switch-off delay of the actuator can be programmed via the web interface of the System Access Point. For switching 127 V~/230 V~ consumers. With integrated switch actuator. Switching function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). The bus can be connected via enclosed terminal block. When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.

More details


Home Automation

* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

Total price: $182.06
Unit price: $182.06

Quantity Price
1+$182.06
2+$158.36
3+$153.58
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


  • Extended Product Type:
    MSA-F-1.1.PB.1
  • Product ID:
    2CKA006220A0231
  • EAN:
    4011395187340
  • Catalog Description:
    MSA-F-1.1.PB.1 MovDetect/actuator 1g, 44
  • Long Description:
    With select lens for detection with animal access. For automatic switching of ABB-free@home® actuators dependent on movement and brightness. Switch-off delay of the actuator can be programmed via the web interface of the System Access Point. For switching 127 V~/230 V~ consumers. With integrated switch actuator. Switching function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). The bus can be connected via enclosed terminal block. When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Rated Current (In):
    10 A
  • Maximum Switching Power:
    2300 W
  • Number of Outputs:
    1
  • Number of Channels:
    1
  • Compatible Bus Systems:
    free@home (TP)
  • Product Range:
    free@home
  • Minimum Switching Time:
    Switch-On 30 second [unit of time]
  • Load Type:
    ohmic
  • Mounting Type:
    Flush Mounted
  • Mounting Position:
    vertical
  • Model Number:
    Movement sensor
  • Number of Batteries:
    0
  • Application Function:
    Electrical Load and Light Control

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +45 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E5001
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    46mm
  • Product Net Height:
    47.7mm
  • Product Net Depth / Length:
    44mm
  • Product Net Weight:
    52g
  • Built-In Depth (t2):
    32 mm

Ordering

  • Replaced Product ID (OLD):
    6220-0-0231

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001582 - Movement sensor for bus system
  • ETIM 9:
    EC001582 - Movement sensor for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8536 50 80
  • eClass:
    V11.0 : 27143144

Datasheet - PDF

▲
Title: Size: Type:
2CKA006220A0231 MSA-F-1.1.PB.1 EN_2CKA006220A0231.pdf 404 Kbytes 2CKA006220A0231 MSA-F-1.1.PB.1 EN_2CKA006220A0231.pdf
