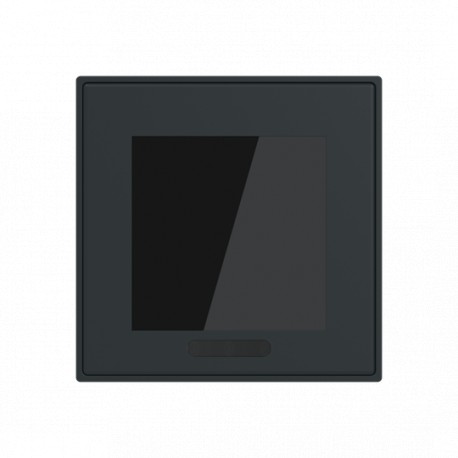

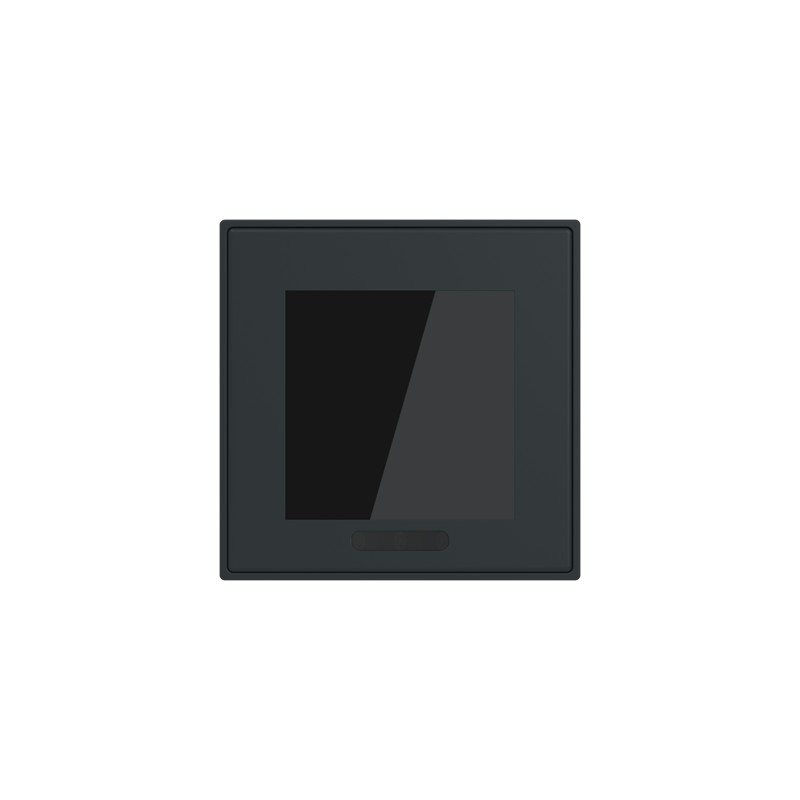

2TMA310011B0004 SD/U12.70.1-825 NIESSEN Display 2.4"
2TMA310011B0004
SD/U12.70.1-825
NIESSEN
Display 2.4"
2.4" Display
Touch Display 2.4 in "glass black - Trevion
Installation bus systems > Signalling and operation panel for bus system
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA001473B5474 |
| Mounting Type | Flush Mounted |
| Mounting Position | Wall |
| Modular Components Included | Cover with Flush Mounted Insert and Mounting Plate |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001473B5474 |
| Number of Outputs | 1 |
| Compatible Bus Systems | KNX (TP) |
| free@home (TP) | |
| Product Range | KNX |
| free@home | |
| Transmission Standard | Twisted Pair Wiring |
| Display Type | TFT Touch |
| Manual Operation | Yes |
| Number of Batteries | 1 |
| Battery Size | ML414H |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Embedded Rechargeable |
| Battery Weight | 0.07 g |
| Battery Lithium Amount | 0.0004 g |
| Battery Report UN 38.3 | 9AKK108471A9736 |
| Terminal Type | Bus Connection |
| Security Standard | KNX Data Secure |
| Electrical | |
| Rated Voltage (Ur) | 20 ... 32 V |
| Auxiliary Voltage AC/DC | 24 V DC |
| Design | |
| Design Range | Trevion |
| Alba | |
| Busch-art linear | |
| ALBA Touch | |
| Housing Material | Plastic |
| Material | Glass |
| Thermoplastic | |
| Color | glass black |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 42 mm |
| Product Net Weight | 78 g |
| Built-In Depth (t2) | 32 mm |
| Screen Size | 2.4 in |
| Engineering | |
| EPLAN Data | 9AKK108464A1362 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Circular Value | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 51.9 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 98 % |
| Extended Product Lifetime | Product Upgradability |
| Offered with Takeback Services | Take Back for Recycling |
| Environmental Product Declaration - EPD | 9AKK108468A8142 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E9557 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E4770 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0330 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000783 - Signalling and operation panel for bus system |
| ETIM 10 | EC000783 - Signalling and operation panel for bus system |
| eClass | V11.0 : 27143101 |
| UNSPSC | 39121801 |
| Dangerous Goods UN Number | 3091 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2TMA310011B0004 SD/U12.70.1-825 EN_2TMA310011B0004.pdf | 310 Kbytes |
|
