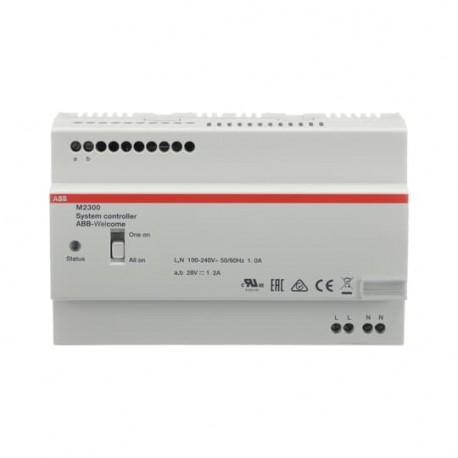

2TMA210161W0001 W2300.20 NIESSEN Sistema de control
2TMA210161W0001
W2300.20
NIESSEN
Sistema de control
Control system

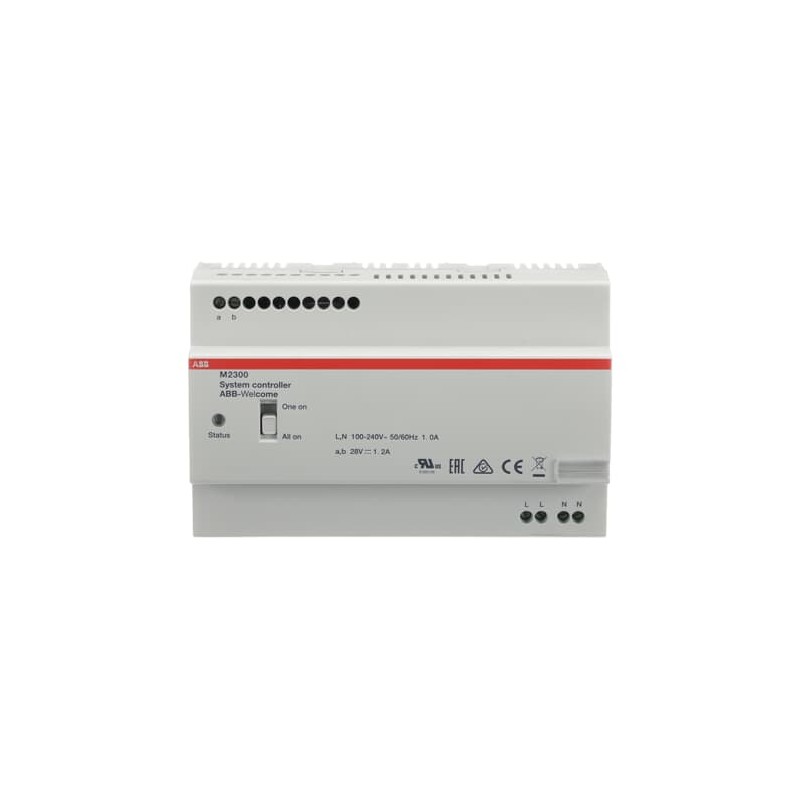

System controller, MDRC 8 DU
Communication technique > Power supply door communication
DES
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | DIN-Rail |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Product Range | Welcome |
| Transmission Standard | 2-Wire |
| Terminal Type | Screw Terminals |
| Electrical | |
| Current Type | DC |
| Input Voltage (Uin) | 230 V |
| Output Voltage (Uout) | Nominal Value 1 20 V |
| Output Current Maximum (Iout) | 1200 mA |
| Design | |
| Material | Plastic |
| Color | grey |
| Dimensions | |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 142 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 437 g |
| Ordering | |
| E-Number (Finland) | 2815714 |
| E-Number (Norway) | 6307465 |
| Circular Value | |
| Environmental Product Declaration - EPD | 9AKK108470A8422 |
| Material Compliance | |
| RoHS Declaration | 2TMD081215X2102 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TMD082113X0001 |
| EU Data Act Compliance Declaration | 9AKK108471A4300 |
| EU Data Act Applicability and Compliance | 2025 Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001089 - Power supply door communication |
| ETIM 10 | EC001089 - Power supply door communication |
| UNSPSC | 32151802 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2TMA210161W0001 W2300.20 EN_2TMA210161W0001.pdf | 109 Kbytes |
|
