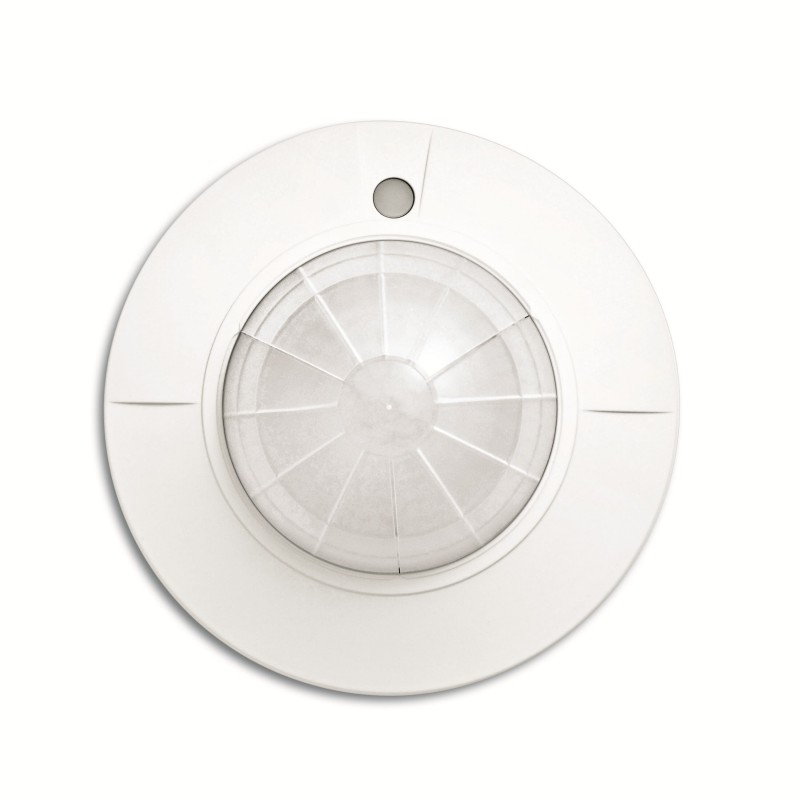

2CLA951200A1001 9512 BL NIESSEN Presence Detector 360 °
2CLA951200A1001
9512 BL
NIESSEN
Presence Detector 360 °
360º presence detector
230 V ; 50 Hz. 2000 W. 1000 VA. Detection angle: 360º. Time setting: 10 seg. - 30 min. Detection range: Ø 24 m, installed in 2,5 height. Additional semi-automatic mode especially designed for educational centres.The light is activated initially pushing a button. then it maintains activated with the constant movement in the area.
Domestic switching devices > Movement sensor complete
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 9512
- Product ID:
- 2CLA951200A1001
- EAN:
- 8427238095103
- Catalog Description:
- Presence detector 360º Passive infrared White 20 °
- Long Description:
- 230 V ; 50 Hz.
2000 W.
1000 VA.
Detection angle: 360º.
Time setting: 10 seg. - 30 min.
Detection range: Ø 24 m, installed in 2,5 height.
Additional semi-automatic mode especially designed for educational centres.The light is activated initially pushing a button. then it maintains activated with the constant movement in the area.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Rated Voltage (Ur):
- 230 V
- Input Voltage Type:
- AC
- Current Range:
- Maximum 80 A
- Frequency (f):
- 50 ... 50 Hz
- Maximum Switching Power:
- 2000 W
- Measuring Range:
- Diameter Detection range on floor 30 m
- Design Range:
- Zenit
- Delay Time (τ):
- On 10 second [unit of time]
Off 500 second [unit of time]
- Minimum Switching Time:
- Switch-On 10 second [unit of time]
- Connection Type:
- Screw
- Mounting Type:
- Flush Mounted
- Sensor Type:
- Passive infrared
- Surface Finishing:
- Untreated
Matt
- Material:
- Thermoplastic
Plastic
- Illuminance:
- 10...2000 lx
- Model Number:
- Presence detector
- RAL Number:
- RAL 9010 - Pure White
- Color:
- White
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP40
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 100mm
- Product Net Height:
- 98mm
- Product Net Depth / Length:
- 106mm
- Product Net Weight:
- 0.343kg
- Built-In Depth (t2):
- 48 mm
Ordering
- Replaced Product ID (OLD):
- 2CL0951200
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000133 - Movement sensor complete
- ETIM 9:
- EC000133 - Movement sensor/presence detector complete
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85389099
