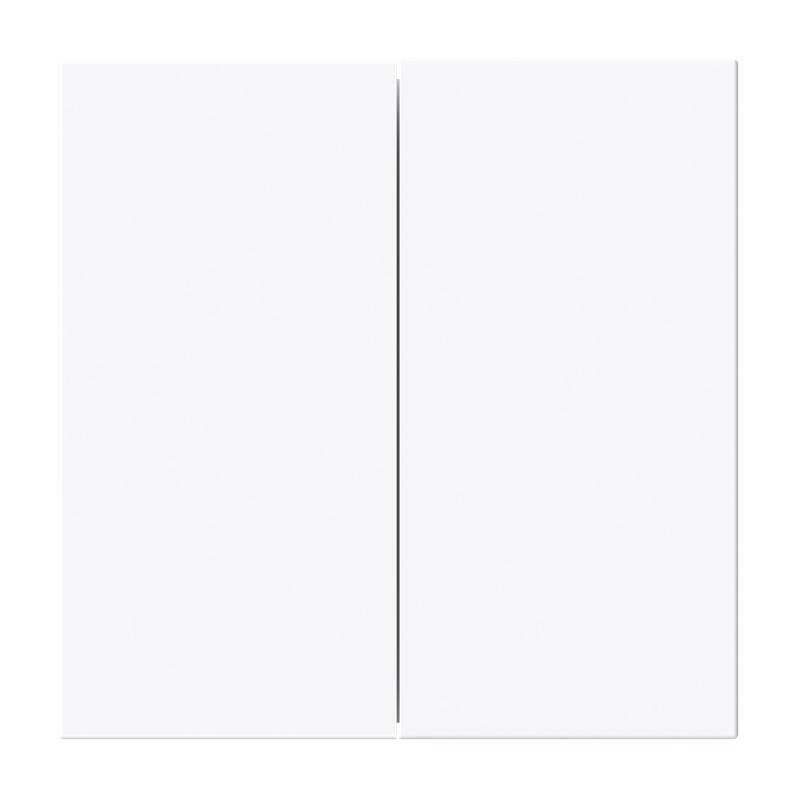

2CLA883220A1101 8832.2 BL NIESSEN Double button wireless sensor BL
2CLA883220A1101
8832.2 BL
NIESSEN
Double button wireless sensor BL
Rocker None for Switch/push button Two-part button White - Vega
Domestic switching devices > Control element/cover plate for domestic switching devices
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Type of Fastening | Clamp |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Application | Switch/push button |
| Design | |
| Design Range | Vega |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Legend | None |
| RAL Number | Similar to RAL 9016 |
| Color | White |
| Dimensions | |
| Product Net Width | 70.4 mm |
| Product Net Height | 70.4 mm |
| Product Net Depth / Length | 9.1 mm |
| Product Net Weight | 0.016 kg |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A8914 |
| Circular Value | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 49.18 % |
| Circular Design Principles Ecodesign | 9AKK108468A3800 |
| Sustainable Material Content in Product (wt. %) | Mechanically Recycled Polymer - 53.14 % |
| Sustainable Material Content in Packaging (wt. %) | 92 % |
| Extended Product Lifetime | Product Modularity |
| End Of Life Disassembling Instructions | 9AKK108471A7079 |
| Environmental Product Declaration - EPD | 9AKK108471A6777 |
| Material Compliance | |
| RoHS Declaration | 2CLC88322BLRO25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC88322BLSV25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
