NIESSENIndustrial2CLA863030A1401 8630.3 CR NIESSEN Interruptor electrónico persianas CR

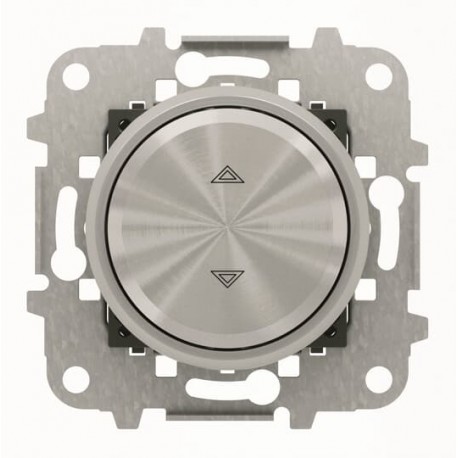

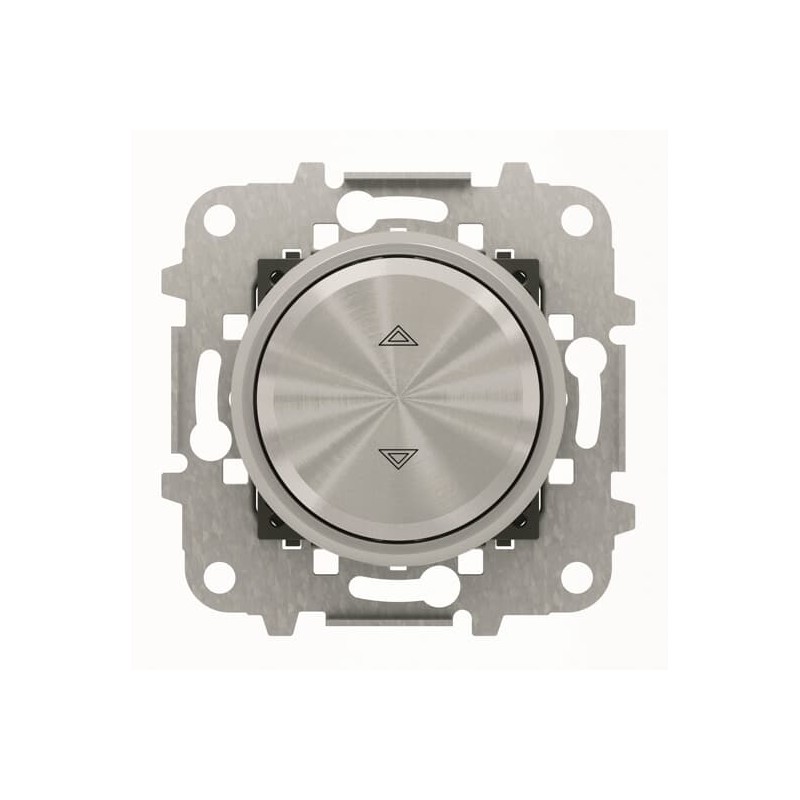

NIESSEN 2CLA863030A1401 8630.3 CR - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA863030A1401 8630.3 CR NIESSEN Interruptor electrónico persianas CR

Reference: 2CLA863030A1401

Code: 8630.3 CR

Manufacturer: NIESSEN

Description:

Interruptor electrónico persianas CR
Electronic Switch CR Blinds
Blind control 1-pole push button 1P Chrome - Skymoon

Categories:

  • Domestic switching devices > Venetian blind switch/-push button
  • NIESSEN > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    8630.3 CR
  • Product ID:
    2CLA863030A1401
  • EAN:
    8427238139944
  • Catalog Description:
    Blind control 1-pole push button 1 Rocker 1 pole, Chrome - Skymoon
  • Long Description:
    Rated voltage: 110 - 250 Vac; 50/60 Hz
    Rated current: 700VA@230Vac / 350VA@127Vac
    Direct control
    Functions:
    - PERS: standard blinds control. Optionally other 8144 inserts can be connected to the 8630.3 to control the blind from other locations
    - LAM: venetian type blinds control. Optionally other 8144 inserts can be connected to the 8630.3 to control the blind from other locations
    - Centralization (CEN): one 8630.3 can control all the 8630.3 of a line centrally
    Without fixing claws
    Included: metallic rocker cover
    Ring color: Chrome

Installation

Popular Downloads

Technical

  • Data Sheet, Technical Information:
    9AKK107046A0356
  • Rated Voltage (Ur):
    230 V
  • Rated Current (In):
    10 A
  • Number of Poles:
    1
  • Number of Buttons:
    1
  • Design Range:
    Skymoon
  • Actuator Type:
    Rocker
  • Connection Type:
    Plug Clamp
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Screw
  • Surface Finishing:
    Glossy
  • Material:
    Metal
  • Label Space Provided:
    No
  • Model Number:
    1-pole push button
  • Color:
    Chrome
  • Number of Batteries:
    0
  • Application Function:
    Blind / Shutter / Shading Control

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CLC863030A1401
  • REACH Declaration:
    9AKK108467A7464
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    0.074m
  • Product Net Height:
    0.062m
  • Product Net Depth / Length:
    0.074m
  • Product Net Weight:
    0.035kg

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000044 - Venetian blind switch/-push button
  • ETIM 9:
    EC000044 - Window blind switch
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85389099
  • UNSPSC:
    39122214
