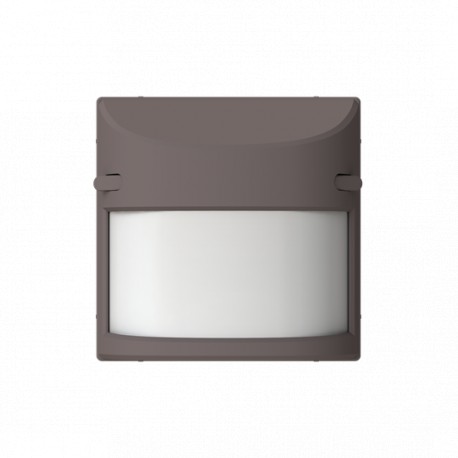

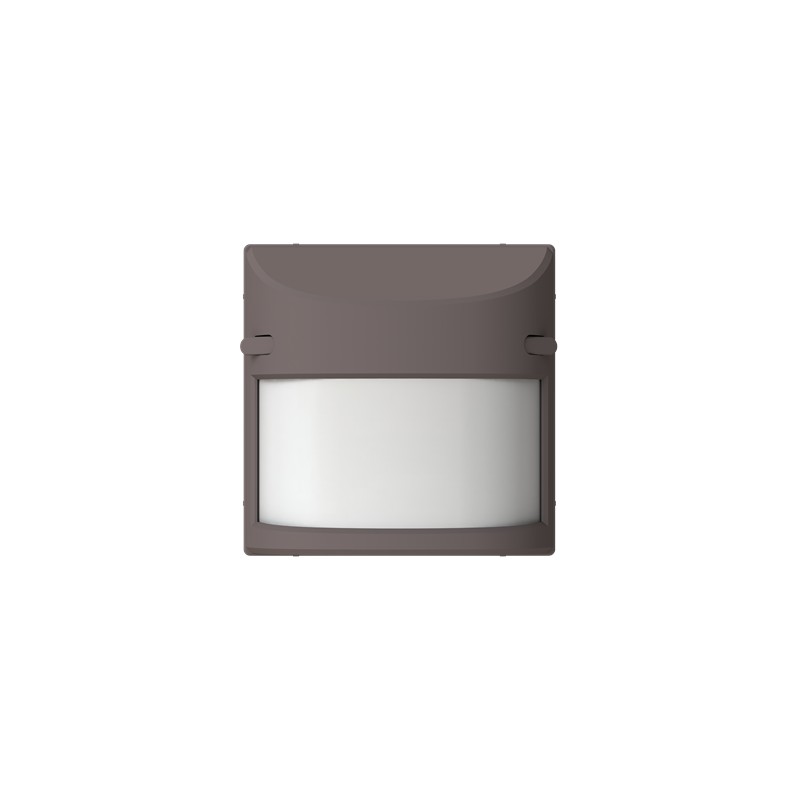

2CLA854110A6301 8541.1 TP NIESSEN Sensor detector movimiento ir TP
2CLA854110A6301
8541.1 TP
NIESSEN
Sensor detector movimiento ir TP
Motion detector sensor go TP
8541.1 TP Movement detector sensor Movement sensor Brown - Sky Niessen
Domestic switching devices > Sensor element for movement sensor
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- 8541.1 TP
- Product ID:
- 2CLA854110A6301
- EAN:
- 8427238236667
- Catalog Description:
- 8541.1 TP Movement detector sensor Movement sensor Brown - Sky Niessen
- Long Description:
- Color: Taupe For automatic switching of devices dependent on motion and brightness.
For relay inserts 8141.4
For MOS-Fet insert 8141.3
With integrated selector switch for ON-AUTOMATIC-OFF (lockable).
Surveillance density: 18 sectors with 72 switching segments.
Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
Temperature range (Device): 0 °C to 35 °C
Detection range: frontal: 12 m, lateral: 8 m
Brightness limit value: 5 Lux - Up to daytime operation
Detection angle: 180 °
Mounting height: 0.8 m - 1.2 m
Technical
- Design Range:
- Sky Niessen
- Mounting Type:
- Flush Mounted
- Material:
- Plastic
Thermoplastic
- Model Number:
- Movement sensor
- Color:
- Brown
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC854110A6301
- REACH Declaration:
- 9AKK108467A7464
- Environmental Information:
- 9AKK108466A4737
Dimensions
- Product Net Width:
- 0.073m
- Product Net Height:
- 0.052m
- Product Net Depth / Length:
- 0.073m
Ordering
- Minimum Order Quantity:
- 1 piece
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Gross Weight:
- 0.04 kg
- Customs Tariff Number:
- 85389099
- Country of Origin:
- Spain (ES)
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Popular Downloads
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Instructions and Manuals:
- 2CLX810109A1001
Classifications
- ETIM 8:
- EC000138 - Sensor element for movement sensor
- ETIM 9:
- EC000138 - Sensor element for movement sensor
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85389099
- UNSPSC:
- 39122236
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA854110A6301 8541.1 TP EN_8541.1 TP.pdf | 234 Kbytes |
|
