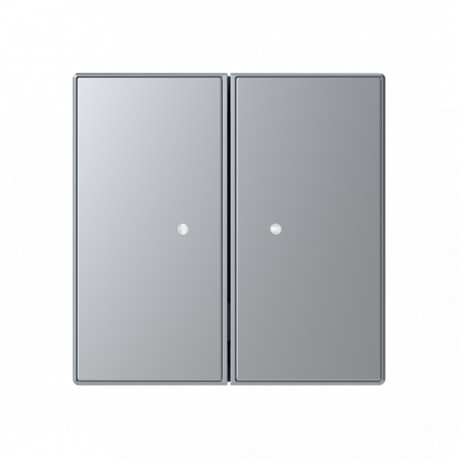

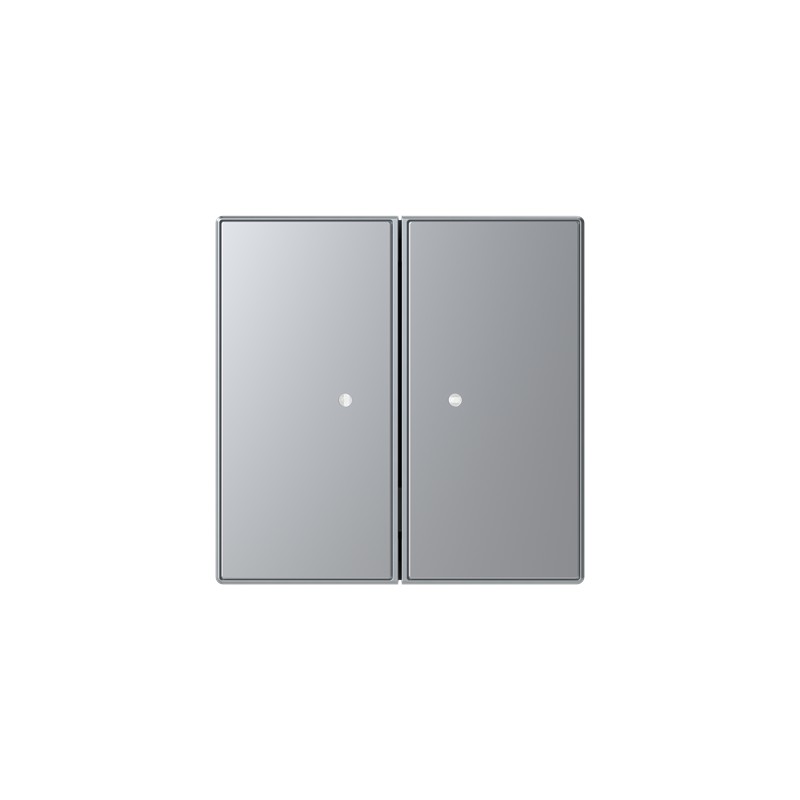

2CLA853120A1301 8531.2 PL NIESSEN KEY WIRELESS SERV.2 CAN. PL
2CLA853120A1301
8531.2 PL
NIESSEN
KEY WIRELESS SERV.2 CAN. PL
Wireless emis.2 key Can. PL
Color: Silver.2-gang wall-mounted transmitter independent of mainspower supply.For switching and dimming.For controlling blinds and light scenes.2 radio channel can be operated or up to 2 light scenes can be called up.For wireless pill type actuators: 8130.4, 8130.5, 8130.7 & 8130.6.Send frequency: 868 MHz.Free-field range: approx. 100 m.Power supply: lithium button cell battery Type CR2032.Battery service life: typically 5 years, therefore practically maintenance-free.Rated voltage: 3 Vdc.Automatic monitoring of battery life.Including fixing plate for mounting on smooth walls or on switch boxes.Control element: Switch contacts top/bottom.Display elements: LED to indicate the transmission.Temperature range (Device): -5 °C to 45 °C.Battery included in delivery.
Domestic switching devices > Transmitter/Remote control for domestic switching devices
Industrial
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 8531.2 PL
- Product ID:
- 2CLA853120A1301
- EAN:
- 8427238146072
- Catalog Description:
- Wireless switch transmitter - 2 channel - Silver 2 channel Radio Control Silver - Sky Niessen
- Long Description:
- Color: Silver.
2-gang wall-mounted transmitter independent of mains
power supply.
For switching and dimming.
For controlling blinds and light scenes.
2 radio channel can be operated or up to 2 light scenes can be called up.
For wireless pill type actuators: 8130.4, 8130.5, 8130.7 & 8130.6.
Send frequency: 868 MHz.
Free-field range: approx. 100 m.
Power supply: lithium button cell battery Type CR2032.
Battery service life: typically 5 years, therefore practically maintenance-free.
Rated voltage: 3 Vdc.
Automatic monitoring of battery life.
Including fixing plate for mounting on smooth walls or on switch boxes.
Control element: Switch contacts top/bottom.
Display elements: LED to indicate the transmission.
Temperature range (Device): -5 °C to 45 °C.
Battery included in delivery.
Installation
- Instructions and Manuals:
- 2CLX850009A1001
Popular Downloads
- Marketing Video:
- 9AKK106930A1594
9AKK108468A9590
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Number of Channels:
- 2
- Design Range:
- Sky Niessen
- Transmission Standard:
- Radio Control
- Mounting Type:
- Surface Mounted
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Color:
- Silver
- Battery Chemical Composition:
- Lithium
- Battery Type:
- Button Cell
- Battery Weight:
- 0.01 kg
- Number of Batteries:
- 1
- Application Function:
- Electrical Load and Light Control
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC853120A1301
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.054m
- Product Net Height:
- 0.054m
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000257 - Transmitter/Remote control for domestic switching devices
- ETIM 9:
- EC000257 - Transmitter/Remote control for domestic switching devices
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85389099
- UNSPSC:
- 39121704
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA853120A1301 8531.2 PL EN_2CLA853120A1301.pdf | 298 Kbytes |
 |
