NIESSENIndustrial2CLA818020A1001 8180.2 NIESSEN Señalizador pase-espere

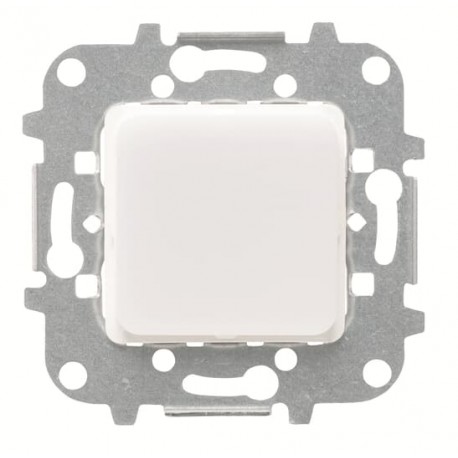

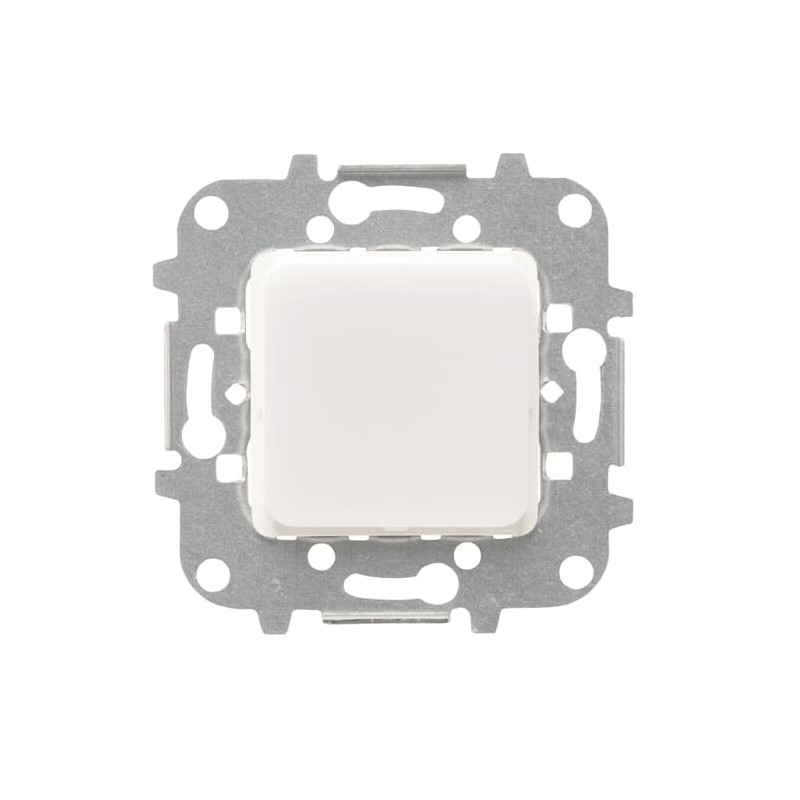

NIESSEN 2CLA818020A1001 8180.2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA818020A1001 8180.2 NIESSEN Señalizador pase-espere

Reference: 2CLA818020A1001

Code: 8180.2

Manufacturer: NIESSEN

Description:

Señalizador pase-espere
Pass-Wait Signaler
Signaling LED not exchangeable / Red / Green

Categories:

  • Domestic switching devices > Information light signal for domestic switching devices
  • NIESSEN > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 40,75 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Installation
Instructions and Manuals2CLX818019A1001
Mounting TypeFlush Mounted
Type of FasteningScrew
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK107046A0356
Lamp TypeLED not exchangeable
Accessories AvailableYes
Lamp ColorRed / Green
Number of Batteries0
Electrical
Rated Voltage (Ur)230 V
Design
Design RangePlatform 8100
Arco
Sky Niessen
Vega
Surface FinishingUntreated
Matt
MaterialThermoplastic
Plastic
Dimensions
Product Net Width0.073 m
Product Net Height0.052 m
Product Net Depth / Length0.073 m
Product Net Weight0.072 kg
Built-In Depth (t2)40 mm
Ordering
Replaced Product ID (OLD)2CL0818020
Material Compliance
RoHS Declaration2CLC818020A1001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK107680A8230
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000064 - Information light signal for domestic switching devices
ETIM 10EC000064 - Information light signal for domestic switching devices
UNSPSC39122200

DATASHEET - PDF

Title
Size
Type
2CLA818020A1001 8180.2 EN_2CLA818020A1001.pdf
100 Kbytes
PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN
88 Mbytes
PDF CATALOGUE NIESSEN EN
36 Mbytes
