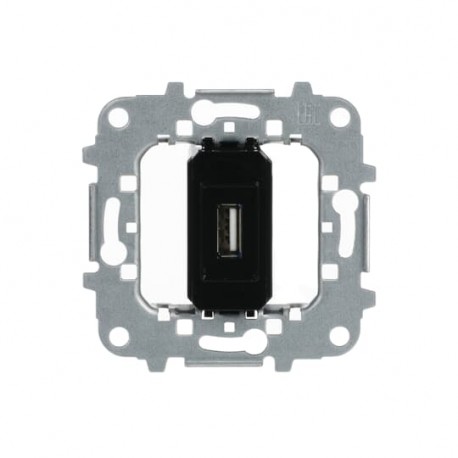

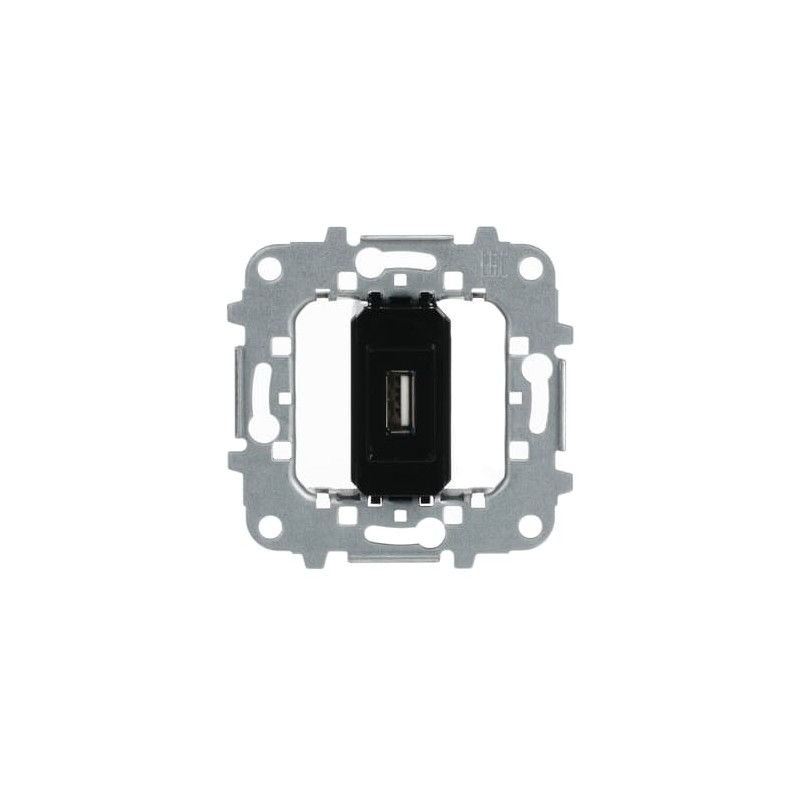

2CLA815580A1001 8155.8 NIESSEN Take VDI USB connection with screw
2CLA815580A1001
8155.8
NIESSEN
Take VDI USB connection with screw
USB VDI socket with screw connection
Front: 1x USB 2.0 connector (Type A connector) Rear: screw terminals (5 wires) Without fixing claws Cover plate code: 8555
Industrial
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 8155.8
- Product ID:
- 2CLA815580A1001
- EAN:
- 8427238193540
- Catalog Description:
- VDI connector USB 1gang No color
- Long Description:
- Front: 1x USB 2.0 connector (Type A connector)
Rear: screw terminals (5 wires)
Without fixing claws
Cover plate code: 8555
Installation
- Instructions and Manuals:
- 2CLX215509N1001
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Application:
- USB
- Design Range:
- Platform 8100
Alba
Sky Niessen
- Mounting Type:
- Flush mounted (plaster)
- Type of Fastening:
- Mounting with Screw
- Outlet Orientation:
- Straight
- Color:
- No color
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC815580A1001
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 73mm
- Product Net Height:
- 52mm
- Product Net Depth / Length:
- 0.073m
- Product Net Weight:
- 0.057kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A1758
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369010
- UNSPSC:
- 39121462
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA815580A1001 8155.8 EN_2CLA815580A1001.pdf | 123 Kbytes |
 |
