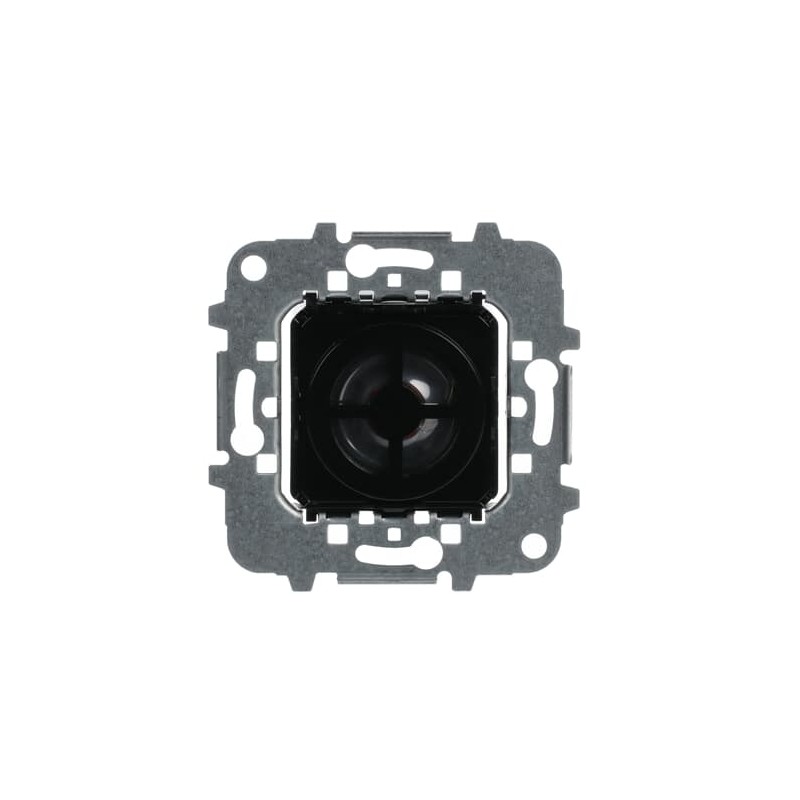

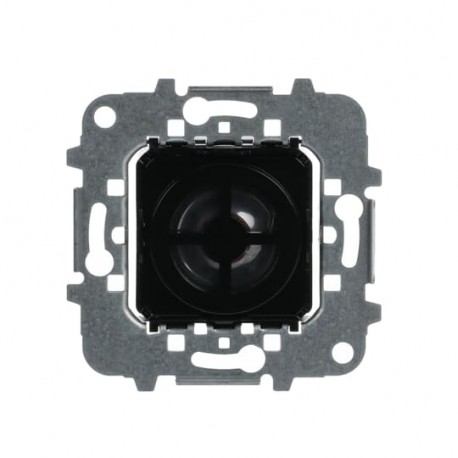

2CLA812420A1001 8124.2 NIESSEN Ringer 4 melodies
2CLA812420A1001
8124.2
NIESSEN
Ringer 4 melodies
Timbre 4 melodies
Rated voltage: 110 - 250 Vac4 melodies availableAcoustic power at 1 meter with cover plate: 72 dBWithout fixing claws Cover plate code: 8529, 8629, 8429, 8229 & 5529
Optical and acoustic signalling equipment > Bell
Industrial
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 8124.2
- Product ID:
- 2CLA812420A1001
- EAN:
- 8427238140001
- Catalog Description:
- Electronic door bell with 4 melodies - Platform 8100
- Long Description:
- Rated voltage: 110 - 250 Vac
4 melodies available
Acoustic power at 1 meter with cover plate: 72 dB
Without fixing claws
Cover plate code: 8529, 8629, 8429, 8229 & 5529
Installation
- Instructions and Manuals:
- 2CLX812409A1001
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Current Type:
- AC
- Rated Voltage (Ur):
- 230 V
- Power Consumption (@Pcons):
- 0.2 A
- Design Range:
- Platform 8100
Alba
Sky Niessen
- Sound dB (A):
- 72 dB
- Mounting Type:
- Flush mounted (plaster)
- Housing Material:
- Plastic
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC812420A1001
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 2
- Product Net Width:
- 0.076m
- Product Net Height:
- 0.064m
- Product Net Depth / Length:
- 0.076m
- Product Net Weight:
- 0.146kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000131 - Bell
- ETIM 9:
- EC000131 - Bell
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365080
- UNSPSC:
- 46171618
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA812420A1001 8124.2 EN_2CLA812420A1001.pdf | 149 Kbytes |
 |
