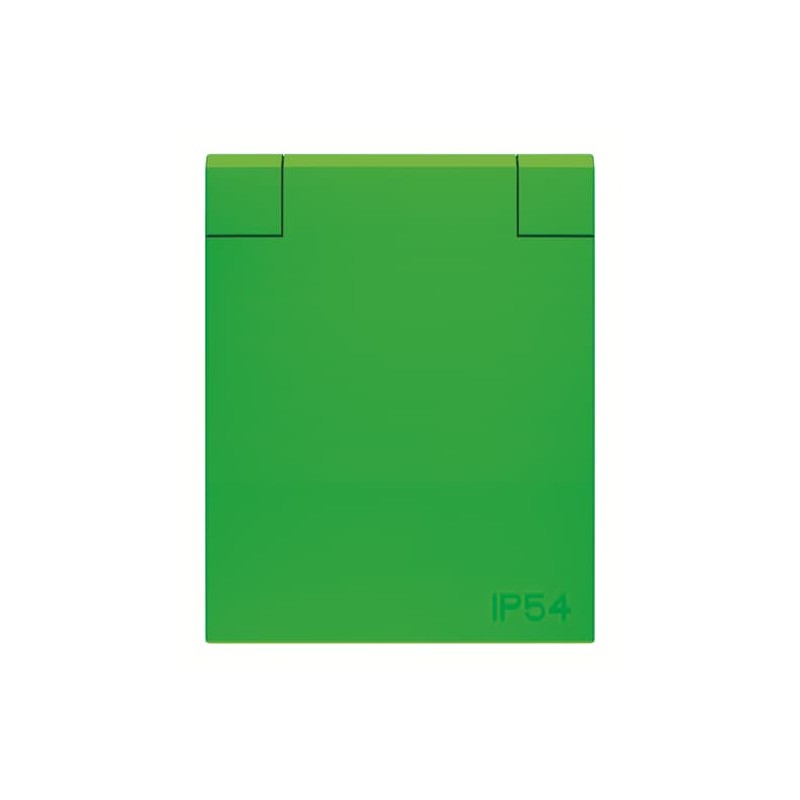

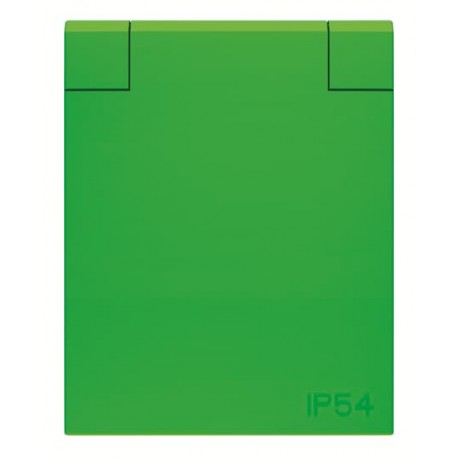

2CLA328800A8001 3288 VD NIESSEN Schuko IP54 panel VD plug base
2CLA328800A8001
3288 VD
NIESSEN
10
Schuko IP54 panel VD plug base
Color: Green. 16 A ; 250 V~. Support for waterproof socket IP54 IK08. For panels.Child protection.Lid with 180º opening angle. UNE 20315 /IEC 60884-1.
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- 3288 VD
- Product ID:
- 2CLA328800A8001
- EAN:
- 8427238197241
- Catalog Description:
- Schuko socket outlet IP54 for panel - Green Protective contact (SCHUKO) with Hinged Lid Green - Variant+
- Long Description:
- Color: Green.
16 A ; 250 V~.
Support for waterproof socket IP54 IK08.
For panels.
Child protection.
Lid with 180º opening angle.
UNE 20315 /IEC 60884-1.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Rated Voltage (Ur):
- 250 V
- Rated Current (In):
- 16 A
- Frequency (f):
- 50...60 Hz
- Number of Phases:
- 2
- Number of Gangs:
- 1
- Design Range:
- Variant+
- Connection Type:
- Screw
- Mounting Type:
- Flush mounted (plaster)
- Socket Outlet Type:
- Protective Contact (SCHUKO)
- Type of Fastening:
- Engage (Snap)
- Surface Finishing:
- Untreated
Matt
- Material:
- Thermoplastic
Plastic
- Label Space Provided:
- No
- Legend:
- Without imprint
- Model Number:
- Protective contact (SCHUKO)
- Color:
- Green
- Number of Batteries:
- 0
- Protection Cap Type:
- Hinged Lid
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP54
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000125 - Socket outlet
- ETIM 9:
- EC000125 - Socket outlet
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Business
- CN8:
- 85366990
- UNSPSC:
- 39121406
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA328800A8001 3288 VD EN_2CLA328800A8001.pdf | 110 Kbytes |
|
