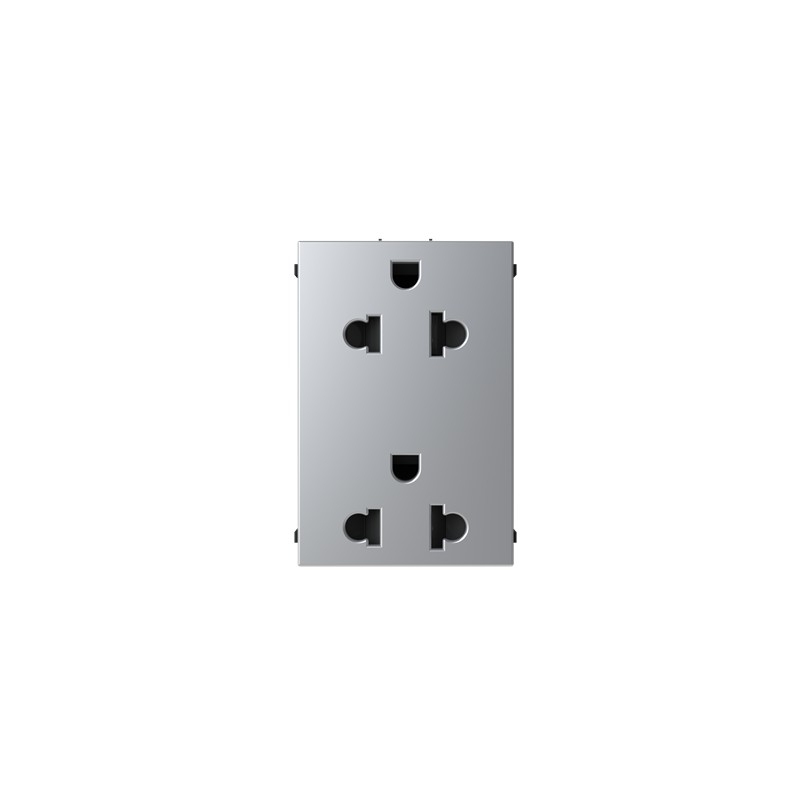

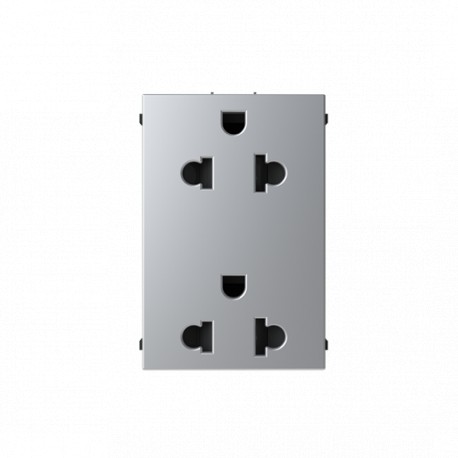

2CLA233800N1301 N2338 PL NIESSEN BE euroamerica duplex 2P+T 3M PL
2CLA233800N1301
N2338 PL
NIESSEN
20
BE euroamerica duplex 2P+T - 3M - PL
Duplex plug base 2P+T PL
Socket outlet EU/US 2P+E Without imprint Silver - Zenit
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Multi - Standard Socket |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50 … 60 Hz |
| Power Supply Type | External |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Color | Silver |
| Number of Gangs | 1-gang |
| Number of Modules | 3 |
| Dimensions | |
| Product Net Width | 66 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 62 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA233800N1302 |
| 2CLA233800N1303 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121406 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA233800N1301 N2338 PL EN_2CLA233800N1301.pdf | 235 Kbytes |
|
