NIESSENFlush-mounting series2CLA224800N1301 N2248 PL NIESSEN Pulsador de tirador PL

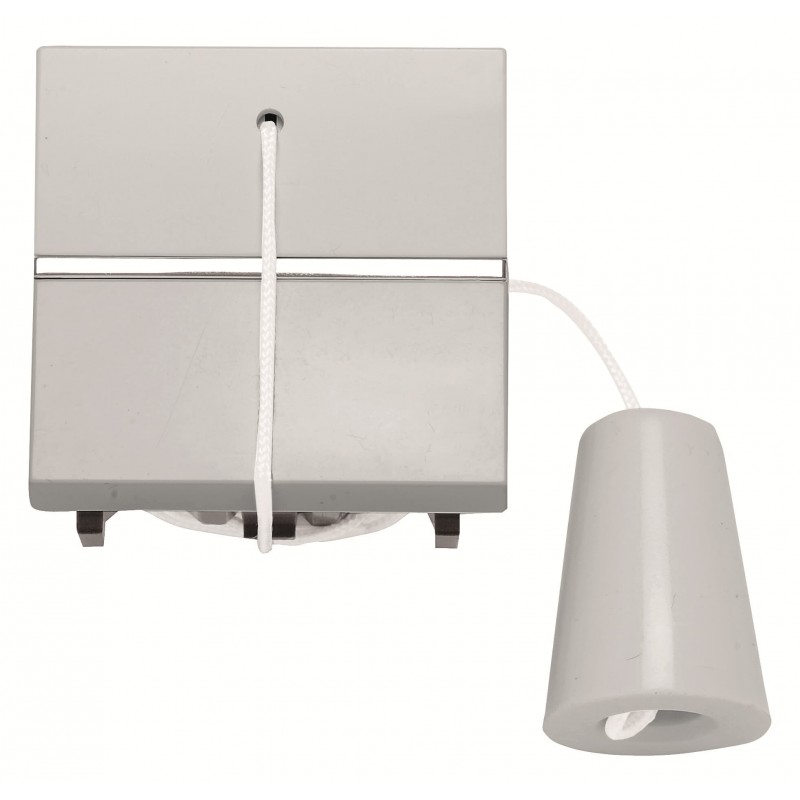

NIESSEN 2CLA224800N1301 N2248 PL - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CLA224800N1301 N2248 PL NIESSEN Pulsador de tirador PL

Reference: 2CLA224800N1301

Code: N2248 PL

Manufacturer: NIESSEN

Description:

Pulsador de tirador PL
PL pushbutton
Insert/cover Push button, Cord switch Off switch 1-pole Silver - Zenit

Categories:

  • Domestic switching devices > Installation switch
  • NIESSEN > Flush-mounting series

Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 71,97 €

Unit Price: 14,394 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Installation
Instructions and Manuals9AKK10103A5108
Mounting TypeFlush-mounted
Type of FasteningEngage (Snap)
Environmental
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
Number of Rocker Switches2
Wiring ConfigurationOff switch 1-pole
Actuator TypePush button
Connection TypePush-In
Electrical
Rated Voltage (Ur)250 V
Rated Current (In)16 A
Load TypeResistive Load
Power Watt4000 ... 4000 W
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
ColorSilver
Number of Modules2
Dimensions
Product Net Width44 mm
Product Net Height44 mm
Product Net Depth / Length73 mm
Product Net Weight46 g
Ordering
Replaced Product ID (OLD)2CLA224800N1302
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP168428d9-9e51-4c67-a3fa-b208e1e7e3ea Spain
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK106930A5900
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC001590 - Installation switch
ETIM 10EC001590 - Installation switch
UNSPSC39122226

DATASHEET - PDF

Title
Size
Type
2CLA224800N1301 N2248 PL EN_2CLA224800N1301.pdf
92 Kbytes
PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN
88 Mbytes
PDF CATALOGUE NIESSEN EN
36 Mbytes
