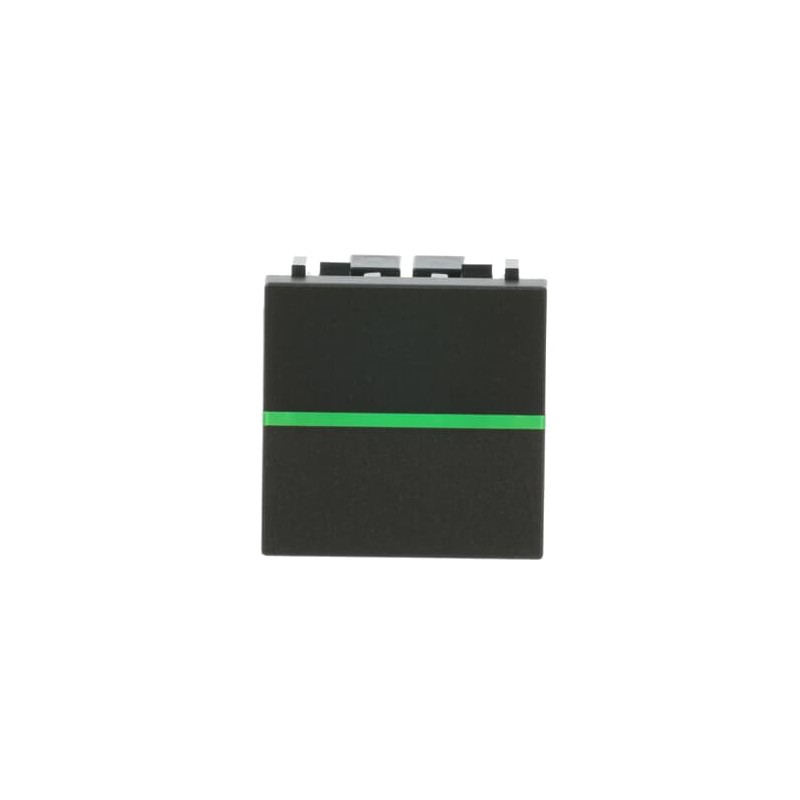

2CLA220250N1801 N2202.5 AN NIESSEN Switch c/pilot control AN
2CLA220250N1801
N2202.5 AN
NIESSEN
5
Switch c/pilot control AN
Switch w/AN control pilot
Color: Anthracite.Rated voltage: 110 - 250 Vac Rated current: 16 AX.Rated power iLED (230/127 Vac): 200/100 W. Screwless terminals With neutral (N) terminal (4 wires) Included: indicator LED lamp N2191 VD (230 Vac) Size: 2 modules.
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- N2202.5 AN
- Product ID:
- 2CLA220250N1801
- EAN:
- 8427238067469
- Catalog Description:
- Switch 2-way Rocker/button Two-way switch with LED exchangeable Anthracite - Zenit
- Long Description:
- Color: Anthracite.
Rated voltage: 110 - 250 Vac
Rated current: 16 AX.
Rated power iLED (230/127 Vac): 200/100 W.
Screwless terminals
With neutral (N) terminal (4 wires)
Included: indicator LED lamp N2191 VD (230 Vac)
Size: 2 modules.
Installation
- Instructions and Manuals:
- 2CLX210109N1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Function:
- Function lighting: Illuminated (on)
- Rated Voltage (Ur):
- 250 V
- Rated Current (In):
- 16 A
- Maximum Switching Current:
- Fluorescent Lamps 16
- Number of Rocker Switches:
- 1
- Design Range:
- Zenit
- Wiring Configuration:
- Two-way switch
- Actuator Type:
- Rocker/button
- Connection Type:
- Plug Clamp
- Lamp Type:
- LED exchangeable
- Mounting Type:
- Flush Mounted
- Type of Fastening:
- Engage (Snap)
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Label Space Provided:
- No
- Illumination:
- Illuminated
- Color:
- Anthracite
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC220250N1801
- REACH Declaration:
- 9AKK108467A7464
- Environmental Information:
- 9AKK108467A3734
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 44mm
- Product Net Height:
- 44mm
- Product Net Weight:
- 0.04kg
Ordering
- Replaced Product ID (OLD):
- 2CLA220250N1802
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK106930A5900
Classifications
- ETIM 8:
- EC001590 - Installation switch
- ETIM 9:
- EC001590 - Installation switch
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365080
- UNSPSC:
- 39122226
