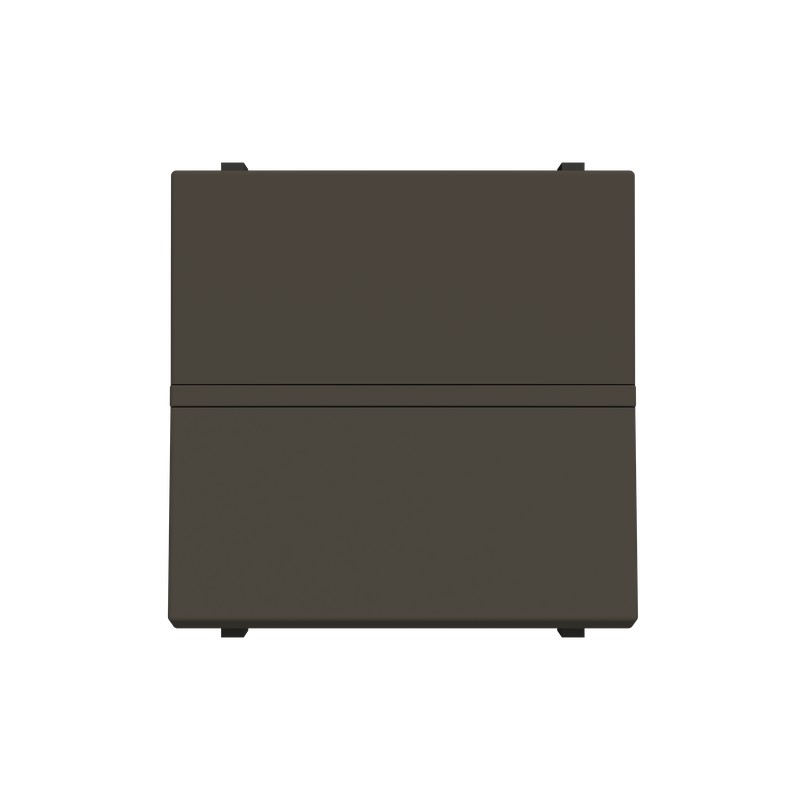

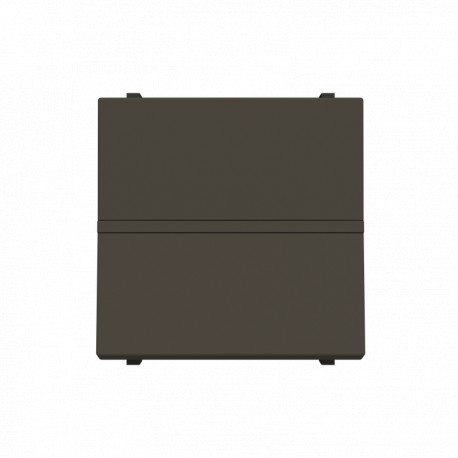

2CLA220200N1601 N2202 AA NIESSEN Conmutador 2M AA
2CLA220200N1601
N2202 AA
NIESSEN
10
Conmutador - 2M - AA
Switch - 2M - AA
Insert/cover Rocker/button, Two-way switch with LED exchangeable Anthracite - Zenit
Domestic switching devices > Installation switch
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Function | Orientation |
| Number of Rocker Switches | 1 |
| Wiring Configuration | Two-way switch |
| Actuator Type | Rocker/button |
| Connection Type | Push-In |
| Lamp Type | LED exchangeable |
| Illumination | Optional |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Maximum Switching Current | 16 A |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Label Space Provided | Without Label Space |
| Color | Anthracite |
| Control Element Color | Anthracite |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 23 g |
| Material Compliance | |
| RoHS Declaration | 2CLC220200N1601 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 155ccb63-186d-4451-94e3-afc9f4ae162b Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A5900 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001590 - Installation switch |
| ETIM 10 | EC001590 - Installation switch |
| UNSPSC | 39122226 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA220200N1601 N2202 AA EN_2CLA220200N1601.pdf | 214 Kbytes |
|
