2CLA212400T1801 T2124 AN NIESSEN Kit surface 4BEAN+2RJ45+ORG AN
2CLA212400T1801
T2124 AN
NIESSEN
Kit surface 4BEAN+2RJ45+ORG AN

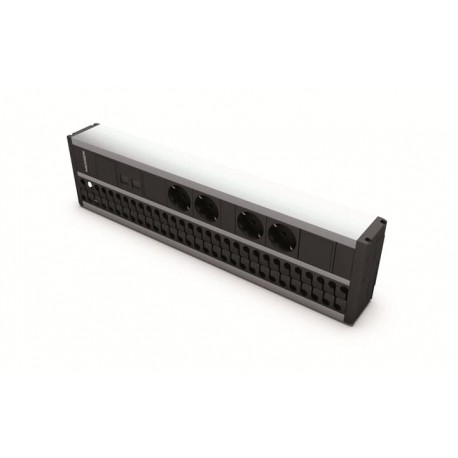

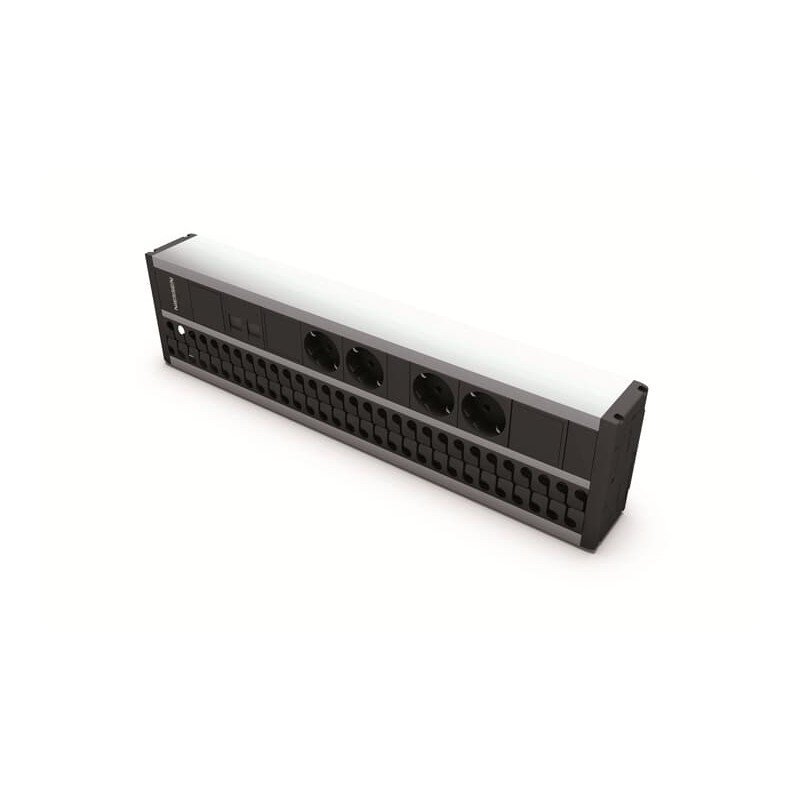

4BEAN+2RJ45+ORG AN Surface Kit
4 Socket outlets fully wired with 2,5mm2 halogen free cable.1 cover for 2 RJ45 connectors compatible with Keystone system (connectors not included).Space for organizing cables.Possibility to adapt the organizer tube in the lateral cover.Mounted on aluminium profile.
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- T2124 AN
- Product ID:
- 2CLA212400T1801
- EAN:
- 8427238114040
- Catalog Description:
- Surface kit 4XSO+1X2RJ45 AN Surface mounting Grey - CEM
- Long Description:
- 4 Socket outlets fully wired with 2,5mm2 halogen free cable.
1 cover for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Space for organizing cables.
Possibility to adapt the organizer tube in the lateral cover.
Mounted on aluminium profile.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Number of Connections:
- Number of audio connections: 0
Number of CAT 5 connections: 0
Number of CAT 5E connections: 0
Number of CAT 6 connections: 2
Number of HDMI-connections: 0
Number of USB connections: 0
- Number of Empty Module Positions:
- 0
- Design Range:
- CEM
- Shape:
- Rectangular
- Material:
- Aluminium
- Model Number:
- Surface mounting
- Color:
- Grey
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC212400T1801
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 470mm
- Product Net Height:
- 120mm
- Product Net Depth / Length:
- 61mm
- Product Net Weight:
- 0.31kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC002759 - Desk connecting unit
- ETIM 9:
- EC002759 - Desk connecting unit
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369001
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA212400T1801 T2124 AN EN_2CLA212400T1801.pdf | 82 Kbytes |
|
