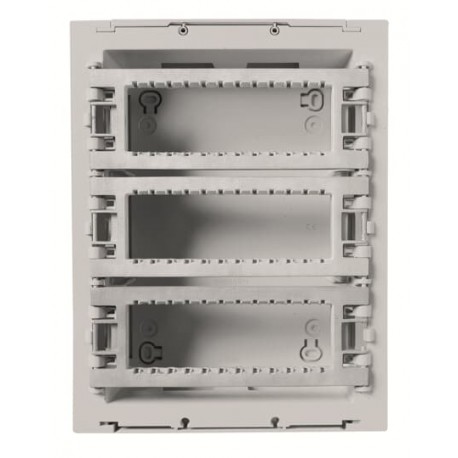

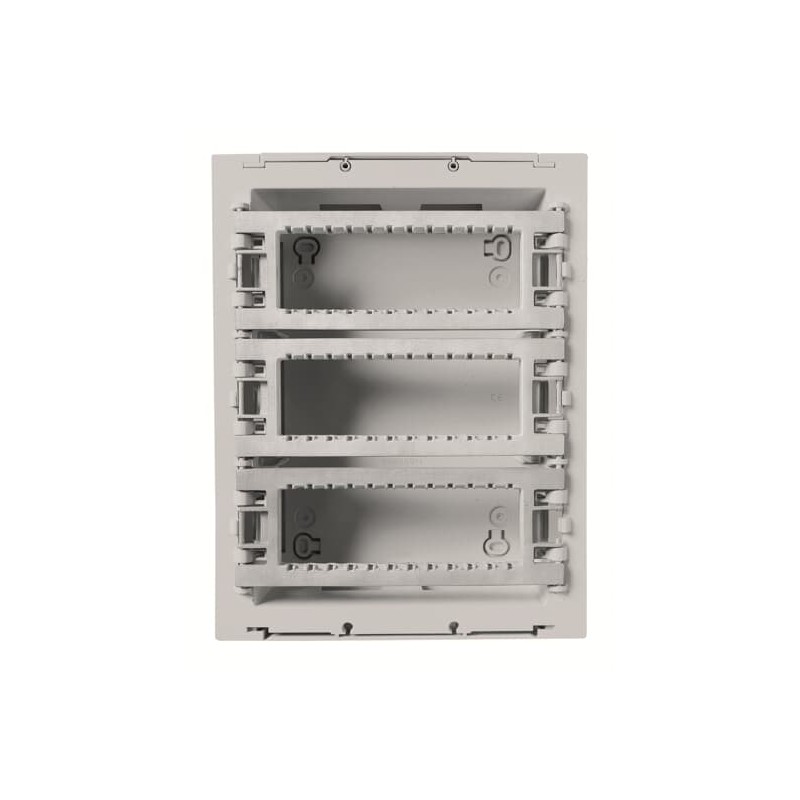

2CLA129300T1301 T1293 PL NIESSEN Zocalo surface 18M PL
2CLA129300T1301
T1293 PL
NIESSEN
Zocalo surface 18M PL
Skirting board surface 18M PL
Color: Silver Zenit centralization box for surface mounted installations.3-gang - 6+6+6 modules.For 1, 2 or 3 module devices.Size (height x width x depth): 275 x 212 x 55 mmIncluded: - Metallic mounting plates (horizontally folding for easy installation)- Screws- PlugsSuitable for frames code: T1273.
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- T1293 PL
- Product ID:
- 2CLA129300T1301
- EAN:
- 8427238141145
- Catalog Description:
- Centralization 18 gang Silver - Zenit
- Long Description:
- Color: Silver
Zenit centralization box for surface mounted installations.
3-gang - 6+6+6 modules.
For 1, 2 or 3 module devices.
Size (height x width x depth): 275 x 212 x 55 mm
Included:
- Metallic mounting plates (horizontally folding for easy installation)
- Screws
- Plugs
Suitable for frames code: T1273.
Installation
- Instructions and Manuals:
- 2CLX129309T1001
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Number of Gangs:
- 18
- Design Range:
- Zenit
- Mounting Orientation:
- Horizontal
Vertical
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Color:
- Silver
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- No declaration needed
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 212mm
- Product Net Height:
- 275mm
- Product Net Depth / Length:
- 55mm
- Product Net Weight:
- 0.942kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000080 - Surface mounted housing for flush mounted switching device
- ETIM 9:
- EC000080 - Surface mounted box for flush-mounted switching equipment
- WEEE Category:
- Product Not in WEEE Scope
- CN8:
- 85389099
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA129300T1301 T1293 PL EN_2CLA129300T1301.pdf | 87 Kbytes |
 |
