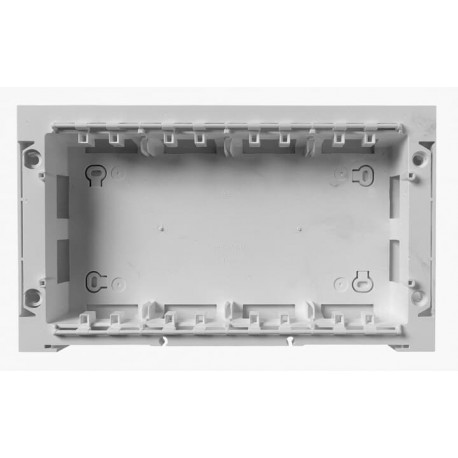

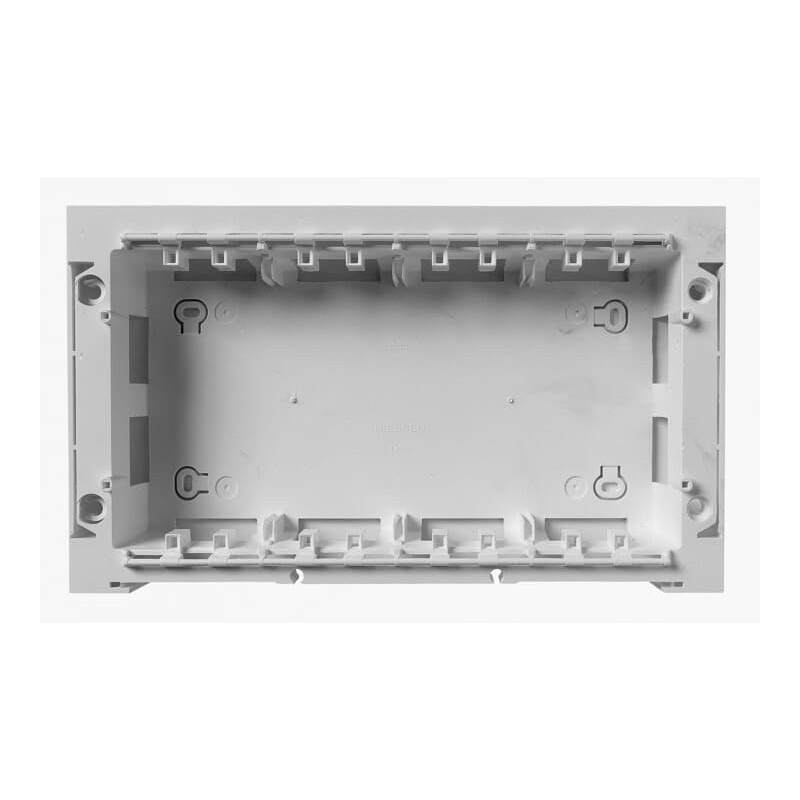

2CLA119400T1301 T1194 PL NIESSEN Zocalo surface 4 columns PL
2CLA119400T1301
T1194 PL
NIESSEN
Zocalo surface 4 columns PL
Surface plinth 4 columns PL
Color: Silver Zenit workstation box for surface mounted installations.4-columns - 2+2+2+2+2+2+2+2 modules.For 1 or 2 module devices. Also suitable for T10XX devices.Size (height x width x depth): 176 x 295 x 45 mmIncluded: - Mounting plates (vertically folding devices for easy installation).- multi-box linking accessories.- Screws.- Plugs.- Side cover for trunking system incoming.- Isolating metallic plate to devide power from VDI.Suitable for frames code: T1174.
Flush-mounting series
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- T1194 PL
- Product ID:
- 2CLA119400T1301
- EAN:
- 8427238143323
- Catalog Description:
- Workstation 16 gang Silver - Zenit
- Long Description:
- Color: Silver
Zenit workstation box for surface mounted installations.
4-columns - 2+2+2+2+2+2+2+2 modules.
For 1 or 2 module devices. Also suitable for T10XX devices.
Size (height x width x depth): 176 x 295 x 45 mm
Included:
- Mounting plates (vertically folding devices for easy installation).
- multi-box linking accessories.
- Screws.
- Plugs.
- Side cover for trunking system incoming.
- Isolating metallic plate to devide power from VDI.
Suitable for frames code: T1174.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- 9AKK10103A5108
- Number of Gangs:
- 16
- Design Range:
- Zenit
- Mounting Orientation:
- Horizontal
Vertical
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Color:
- Silver
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- No declaration needed
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 295mm
- Product Net Height:
- 176mm
- Product Net Depth / Length:
- 45mm
- Product Net Weight:
- 0.525kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000080 - Surface mounted housing for flush mounted switching device
- ETIM 9:
- EC000080 - Surface mounted box for flush-mounted switching equipment
- WEEE Category:
- Product Not in WEEE Scope
- CN8:
- 85389099
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA119400T1301 T1194 PL EN_2CLA119400T1301.pdf | 87 Kbytes |
 |
