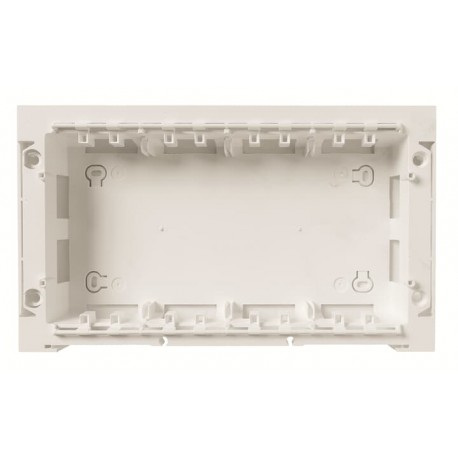

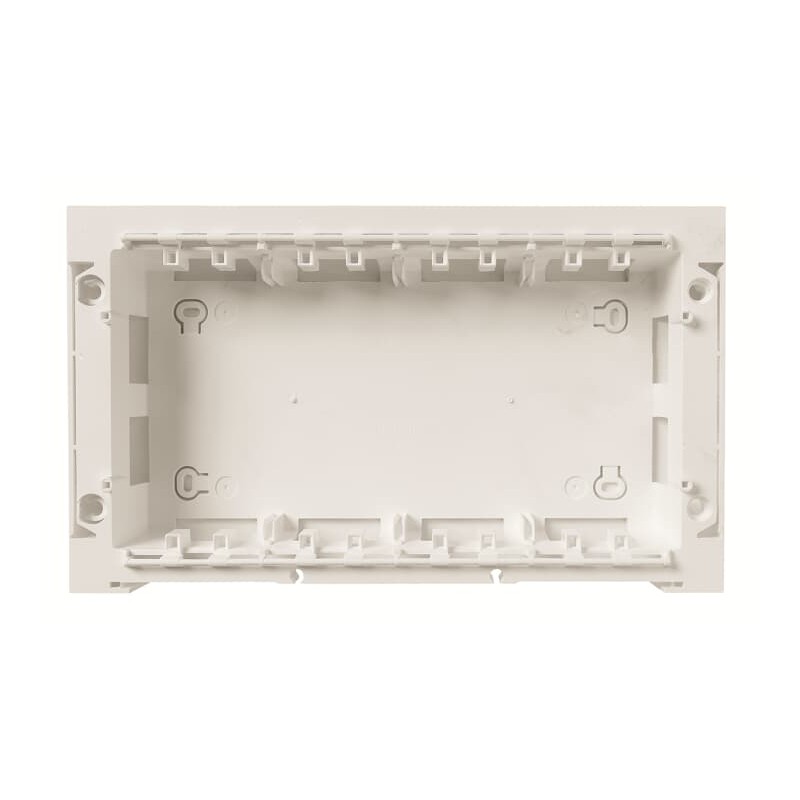

2CLA119400T1001 T1194 BL NIESSEN Zocalo superficie 4 columnas BL
2CLA119400T1001
T1194 BL
NIESSEN
Zocalo superficie 4 columnas BL
Surface plinth 4 BL columns
Workstation 16-gang White - Zenit
Domestic switching devices > Surface mounted housing for flush mounted switching device
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Orientation | Horizontal |
| Vertical | |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Design | |
| Design Range | Zenit |
| Shape | Rectangular |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Color | White |
| Number of Gangs | 16-gang |
| Number of Modules | 16 |
| Dimensions | |
| Product Net Width | 295 mm |
| Product Net Height | 176 mm |
| Product Net Depth / Length | 45 mm |
| Product Net Weight | 0.52 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0T119400 |
| Material Compliance | |
| RoHS Declaration | 2CLC119400T1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 1cb7efb4-bcae-4aed-927f-c616083f72f2 Spain |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000080 - Surface mounted box for flush-mounted switching equipment |
| ETIM 10 | EC000080 - Surface mounted box for flush-mounted switching equipment |
| UNSPSC | 39121310 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA119400T1001 T1194 BL EN_2CLA119400T1001.pdf | 99 Kbytes |
|
