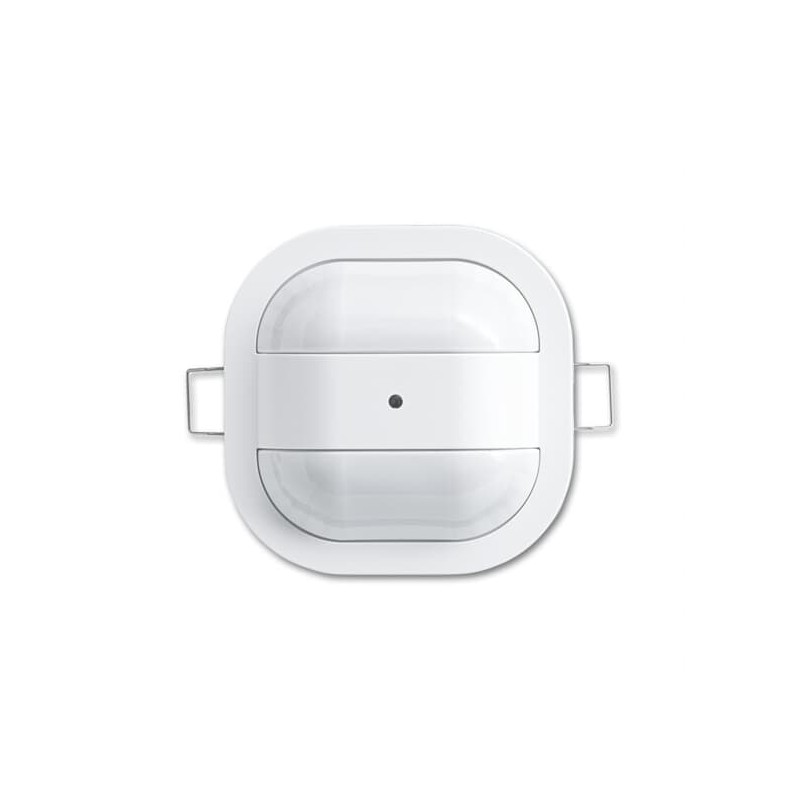

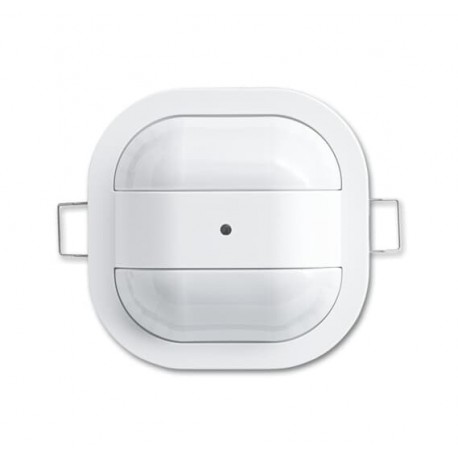

2CKA006800A2735 9541 BL NIESSEN Det. universal presence,relay
2CKA006800A2735
9541 BL
NIESSEN
Det. universal presence,relay
Presence Detector 12 m 2300 W white
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Built-in |
| Mounting Position | Ceiling |
| Mounting Height | Optimum 2 m |
| Modular Components Included | Complete Device |
| Environmental | |
| Ambient Air Temperature | -5 ... 45 °C |
| Operation -5 ... +45 °C | |
| Degree of Protection | IP40 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001673B9577 |
| Measuring Range | 12 m |
| Number of Outputs | 1 |
| Number of Switching Zones | 640 |
| Minimum Switching Time | Switch-On 60 second [unit of time] |
| Sensor Type | Passive Infrared |
| Illuminance | 5 ... 2000 lx |
| Terminal Type | Screw Terminals |
| Sensor Detection Range | 90 ... 360 ° |
| Horizontal 90 ... 360 ° | |
| Electrical | |
| Rated Voltage (Ur) | 110 ... 230 V |
| Input Voltage Type | AC |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 2300 W |
| Fluorescent Lamp 2300 V·A | |
| Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A | |
| Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A | |
| Incandescent Lamp or Halogen High Voltage Lamps 2300 W | |
| LEDi 200 V·A | |
| Load Type | LEDi/CFLi |
| Resistive Load | |
| Halogen Lamp, High Voltage | |
| Halogen Lamp, Low Voltage | |
| Fluorescent Lamp | |
| Power Loss | 0.3 W |
| Design | |
| Design Range | ProfessionalLINE |
| Surface Finishing | Matt |
| Untreated | |
| Material | Plastic |
| Thermoplastic | |
| RAL Number | RAL 9016 - Traffic White |
| Color | white |
| Dimensions | |
| Product Net Width | 94 mm |
| Product Net Height | 94 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 159.5 g |
| Built-In Depth (t2) | 49 mm |
| Ordering | |
| E-Number (Finland) | 2619381 |
| E-Number (Norway) | 1471221 |
| E-Number (Sweden) | 1301053 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E6482 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E0690 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000133 - Movement sensor/presence detector complete |
| ETIM 10 | EC000133 - Movement sensor/presence detector complete |
| eClass | V11.0 : 27144007 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006800A2735 9541 BL EN_2CKA006800A2735.pdf | 95 Kbytes |
|
