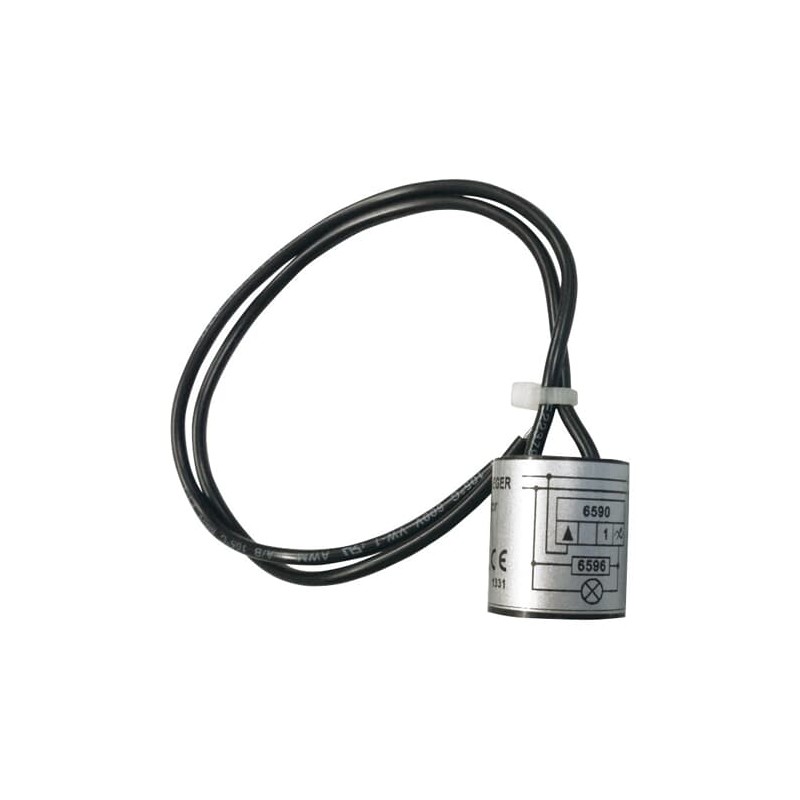

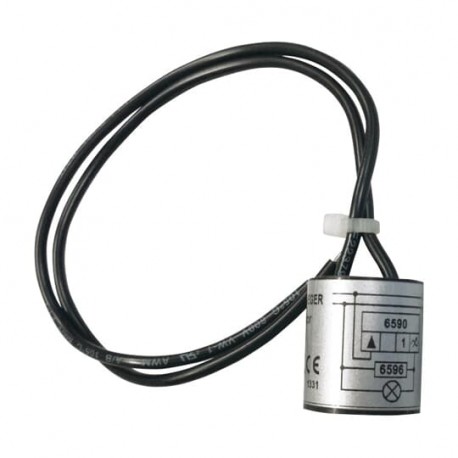

2CKA006599A2290 6596 NIESSEN Filter antiparpadeo for LED
2CKA006599A2290
6596
NIESSEN
Filter antiparpadeo for LED
Anti-flicker filter for LEDs
Prevents the self-ignition of energy-saving or LED lamps during switching with orientation illumination (parallel to the lamp). Prevents after-glow of low-voltage halogen or LED lamps in a deactivated state due to possible ripple voltage or activation via touch-dimmer without neutral conductor connection (parallel to the primary transformer side or to the lamp). Removes noise generation on electronic transformers in a switched-off state during activation via touch-dimmer without neutral conductor connection (parallel to the primary transformer side). Removes ripple voltages on the control line in blind control/group controls (parallel between control wire "UP" and neutral conductor as well as "Down" and neutral conductor). Dimensions: diameter 22 mm, length 25 mm, length of the connecting cable approx. 235 mm.
Domestic switching devices > Accessories/spare parts for domestic switching devices
Home Automation
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 6596
- Product ID:
- 2CKA006599A2290
- EAN:
- 4011395638507
- Catalog Description:
- Compensator 250 V
- Long Description:
- Prevents the self-ignition of energy-saving or LED lamps during switching with orientation illumination (parallel to the lamp). Prevents after-glow of low-voltage halogen or LED lamps in a deactivated state due to possible ripple voltage or activation via touch-dimmer without neutral conductor connection (parallel to the primary transformer side or to the lamp). Removes noise generation on electronic transformers in a switched-off state during activation via touch-dimmer without neutral conductor connection (parallel to the primary transformer side). Removes ripple voltages on the control line in blind control/group controls (parallel between control wire "UP" and neutral conductor as well as "Down" and neutral conductor). Dimensions: diameter 22 mm, length 25 mm, length of the connecting cable approx. 235 mm.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Rated Voltage (Ur):
- 250 V
- Rated Frequency (f):
- 50 Hz
- Mounting Type:
- Built-in
- Application Function:
- Electrical Load and Light Control
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CKA200000E6001
- REACH Declaration:
- 2CKA309999E9999
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 21.9mm
- Product Net Height:
- 21.9mm
- Product Net Depth / Length:
- 26mm
- Product Net Weight:
- 16.5g
Ordering
- Replaced Product ID (OLD):
- 6599-0-2290
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CKA100000E1711
Classifications
- ETIM 8:
- EC002649 - Accessories/spare parts for domestic switching devices
- ETIM 9:
- EC002649 - Accessories/spare parts for domestic switching devices
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8536 49 00
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CKA006599A2290 6596 EN_2CKA006599A2290.pdf | 99 Kbytes |
 |
