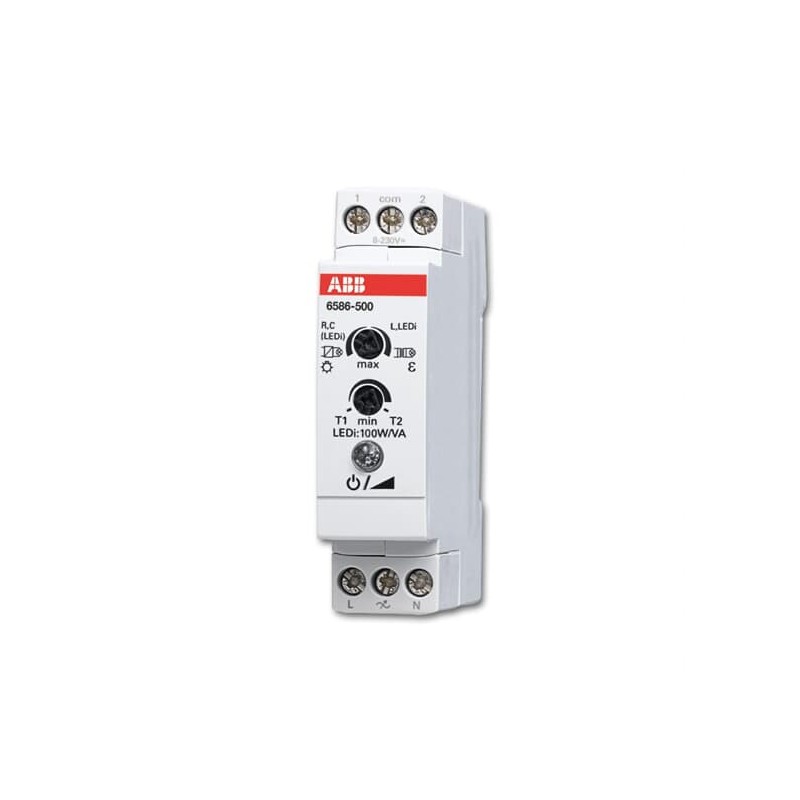

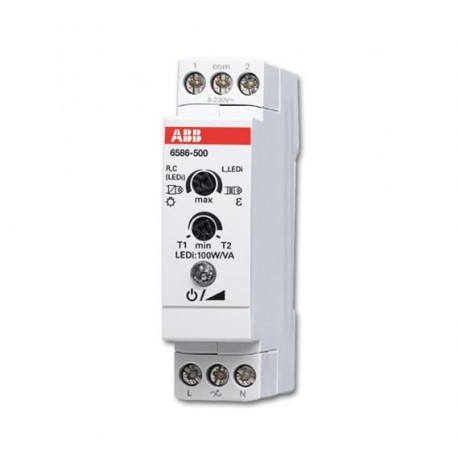

2CKA006590A0191 6586-500 NIESSEN Regulator LED DIN rail
2CKA006590A0191
6586-500
NIESSEN
Regulator LED DIN rail
DIN rail LED regulator
Dimmer with Push button, 2...100 V·A, 8 ... 230 V AC/DC, 1.0 modular spacing
Domestic switching devices > Dimmer
Flush-mounting series
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | DEBJE-6590-0-0191 |
| Mounting Type | DIN-Rail |
| Type of Fastening | Snapper Mounting |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +35 °C |
| Degree of Protection | IP20 |
| Technical | |
| Application | Dimmable Retrofit-LEDs (LEDi) |
| Actuator Type | Push button |
| Terminal Type | Screw Terminals |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Rated Control Supply Voltage (Us) | 8 ... 230 V AC/DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Load Type | Universal and LED Retrofit |
| LEDi | |
| Incandescent Lamp | |
| Halogen Lamp, High Voltage | |
| Halogen Lamp, Low Voltage | |
| Power Loss | 0.5 W |
| Power Watt | 2...100 V·A |
| Control Supply Voltage | 8...230 V |
| Design | |
| Surface Finishing | Untreated |
| Matt | |
| Material | Thermoplastic |
| RAL Number | Similar to RAL 7035 |
| Color | grey |
| Number of Modules | 1 |
| Dimensions | |
| Width in Number of Modular Spacings | 1.0 |
| Product Net Width | 65 mm |
| Product Net Height | 74 mm |
| Product Net Depth / Length | 18 mm |
| Product Net Weight | 56 g |
| Dimension Diagram | 2CKA000097E0732 |
| Ordering | |
| E-Number (Finland) | 2619399 |
| E-Number (Norway) | 1471303 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E5976 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E1708 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000025 - Dimmer |
| ETIM 10 | EC000025 - Dimmer |
| eClass | V11.0 : 27144014 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006590A0191 6586-500 EN_2CKA006590A0191.pdf | 95 Kbytes |
|
