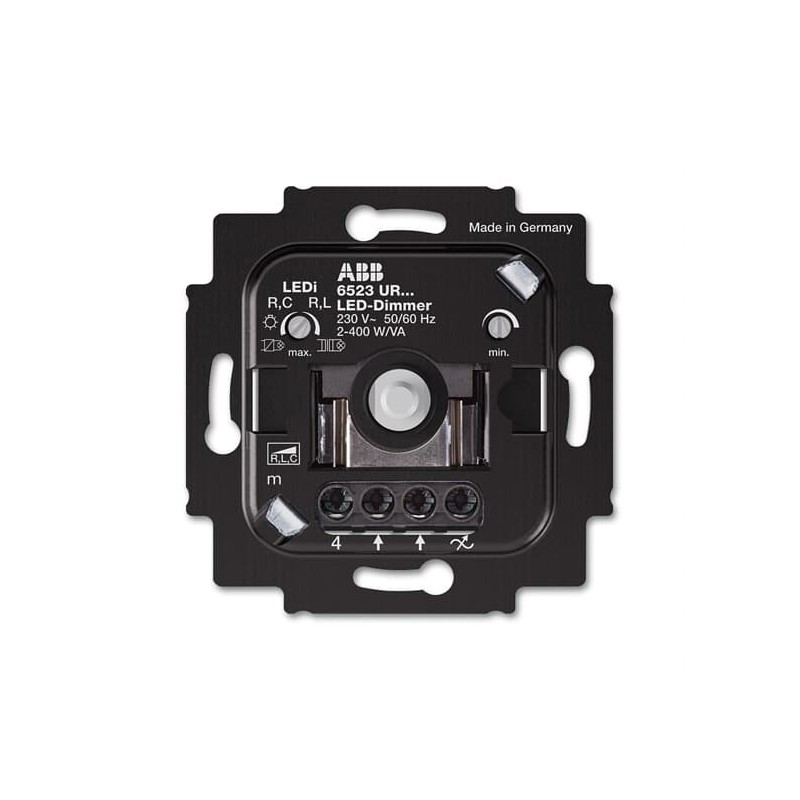

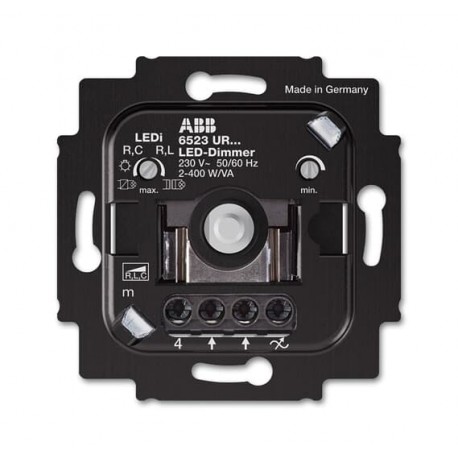

2CKA006512A0345 8160.6 NIESSEN Regulator gir. LED 2-400W
2CKA006512A0345
8160.6
NIESSEN
Regulator gir. LED 2-400W
Busch-Rotary dimmer Dimmer Turn/push button 230 V 2...400 V·A
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA009973B9123 |
| Mounting Type | Flush Mounted |
| Type of Fastening | Mounting with Screw |
| Modular Components Included | Flush Mounted Insert with Mounting Plate |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +35 °C |
| Degree of Protection | IP20 |
| Technical | |
| Actuator Type | Turn/push button |
| Rated Cross-Section | 1 - Solid-Core 1 ... 2.5 mm² |
| Terminal Type | Screw Terminals |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Rated Frequency (f) | 50 / 60 Hz |
| Load Type | Universal and LED Retrofit |
| LEDi | |
| Incandescent Lamp | |
| Halogen Lamp, High Voltage | |
| Halogen Lamp, Low Voltage | |
| Power Consumption (@Pcons) | 0 W |
| Power Watt | 2...400 V·A |
| Design | |
| Design Range | Platform 63 |
| Busch-Duro 2000 SI | |
| Reflex SI | |
| Busch-balance SI | |
| Busch-art linear | |
| future linear | |
| Busch-axcent | |
| solo | |
| Pure Stainless Steel | |
| carat | |
| Busch-Dynasty | |
| alpha | |
| Design Range Variant | Busch-Duro 2000 SI |
| Busch-Duro 2000 SI Linear | |
| Reflex SI | |
| Reflex SI Linear | |
| Busch-art linear | |
| Busch-art linear - with Decor Ring | |
| Busch-art linear - pur | |
| future | |
| future linear | |
| Busch-axcent | |
| Busch-axcent pur | |
| alpha nea | |
| alpha exclusive | |
| Surface Finishing | Matt |
| Untreated | |
| Material | Plastic |
| Thermoplastic | |
| Color | black |
| Number of Modules | 0 |
| Dimensions | |
| Product Net Width | 71 mm |
| Product Net Height | 71 mm |
| Product Net Depth / Length | 42 mm |
| Product Net Weight | 53.5 g |
| Built-In Depth (t2) | 20 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108471A9951 |
| Ordering | |
| Replacement Product ID (NEW) | 2CKA006512A0354 |
| E-Number (Finland) | 2619377 |
| E-Number (Sweden) | 1360364 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E5909 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240705 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 29c12a6d-60a3-4ae1-b2dd-1503c5f036f5 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E0646 |
| External Classifications and Standards | |
| ETIM 9 | EC000025 - Dimmer |
| ETIM 10 | EC000025 - Dimmer |
| eClass | V11.0 : 27144014 |
| UNSPSC | 39122206 |
