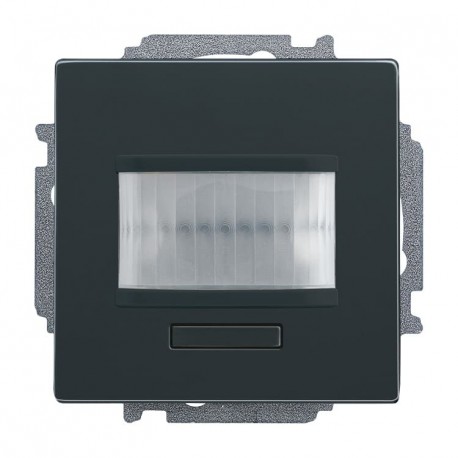

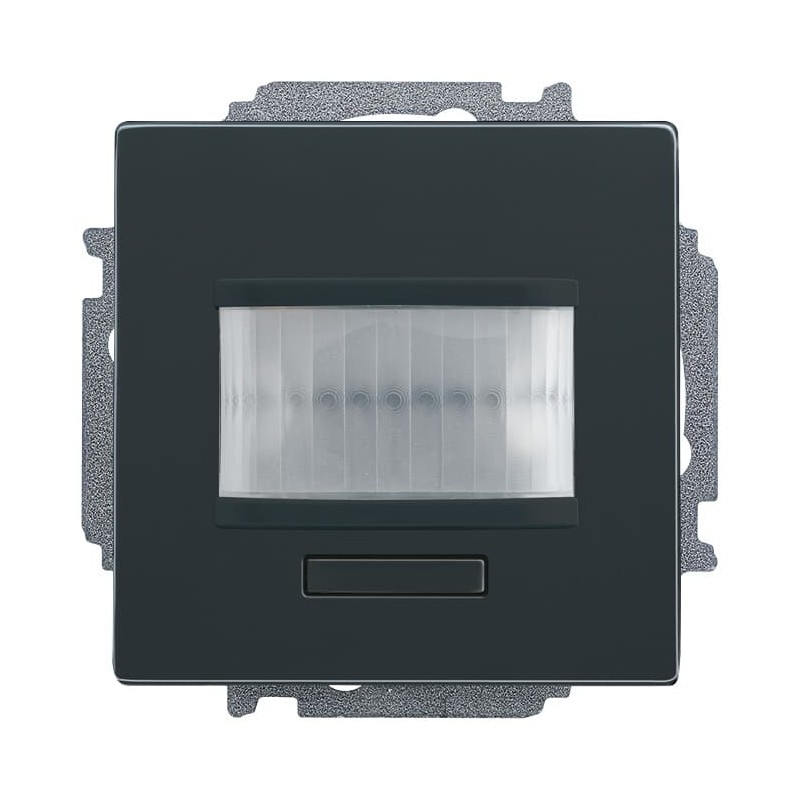

2CKA006200A0083 MSA-F-1.1.1-81-WL NIESSEN Motion Detector/Actuator, WL
2CKA006200A0083
MSA-F-1.1.1-81-WL
NIESSEN
Motion Detector/Actuator, WL
WL-Mov. detector/act. 1g
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush Mounted |
| Mounting Position | vertical |
| Mounting Height | Optimum 1.1 ... 1.3 m |
| Modular Components Included | Cover with Flush Mounted Insert and Mounting Plate |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001473B9110 |
| Number of Outputs | 1 |
| Number of Channels | 1 |
| Compatible Bus Systems | free@home wireless |
| Product Range | free@home Wireless |
| free@home | |
| Transmission Standard | Wireless |
| Minimum Switching Time | Switch-On 30 second [unit of time] |
| Sensor Detection Range | Horizontal 180...180 ° |
| Vertical 19...19 ° | |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Auxiliary Voltage AC/DC | 230 V AC |
| Rated Current (In) | 10 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Maximum Switching Power | 2300 W |
| Load Type | Resistive Load |
| Design | |
| Design Range | Platform 63 |
| future linear | |
| Busch-axcent | |
| carat | |
| Busch-Dynasty | |
| Design Range Variant | Busch-axcent |
| Busch-axcent pur | |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Thermoplastic |
| RAL Number | Similar to RAL 7021 |
| Color | anthracite |
| Dimensions | |
| Product Net Width | 71 mm |
| Product Net Height | 71 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Weight | 100 g |
| Built-In Depth (t2) | 32 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108470A7637 |
| Ordering | |
| E-Number (Finland) | 2814549 |
| E-Number (Norway) | 4549661 |
| E-Number (Sweden) | 1701235 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E7843 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E0614 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0163 |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001582 - Movement sensor for bus system |
| ETIM 10 | EC001582 - Movement sensor for bus system |
| eClass | V11.0 : 27143144 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006200A0083 MSA-F-1.1.1-81-WL EN_2CKA006200A0083.pdf | 123 Kbytes |
|
