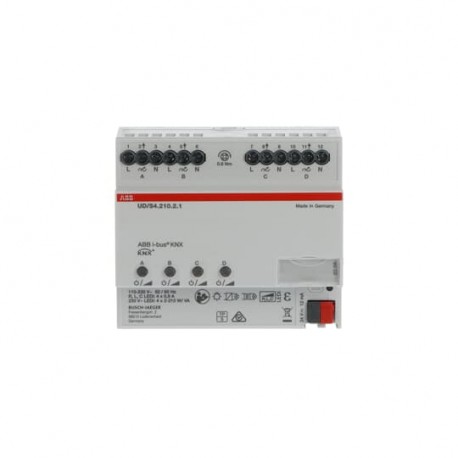

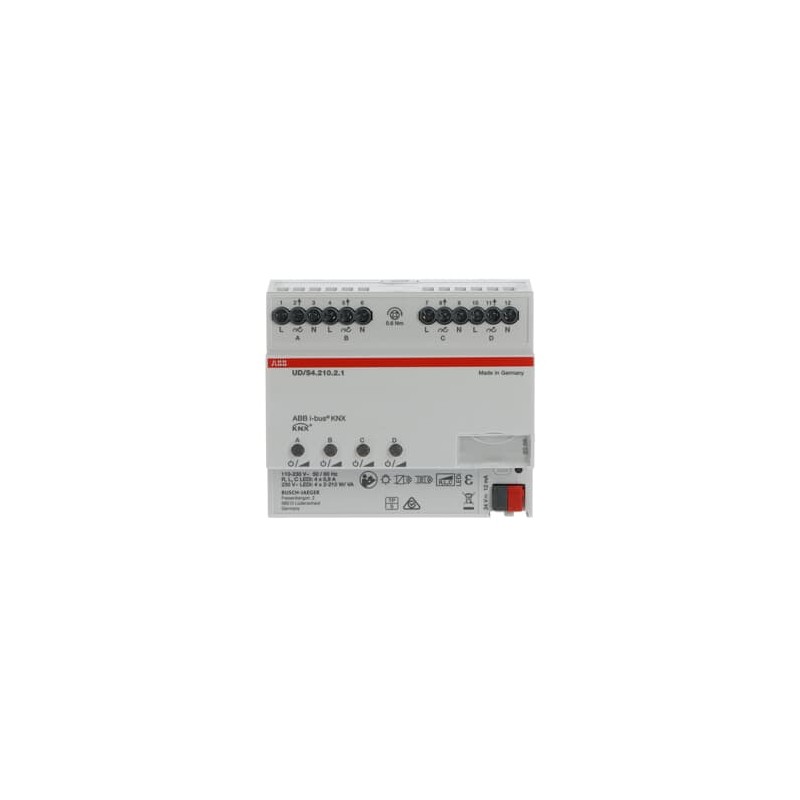

2CKA006197A0047 UD/S 4.210.2.1 NIESSEN Actuador Regulador Universal LED, 4 can.
2CKA006197A0047
UD/S 4.210.2.1
NIESSEN
Actuador Regulador Universal LED, 4 can.
Universal LED Regulator Actuator, 4 can.
LED-Dim actuator 4x210W
Installation bus systems > Dimming actuator for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA000273B9628 |
| Wiring Diagram | 9AKK108469A8944 |
| Mounting Type | DIN-Rail |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001373B9659 |
| Data Sheet, Technical Information (Part 2) | 2CKA001473B9659 |
| Number of Outputs | 4 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Terminal Type | Bus Connection |
| Electrical | |
| Rated Voltage (Ur) | 110 ... 230 V |
| Auxiliary Voltage AC/DC | 110 V AC/DC |
| 230 V AC/DC | |
| Rated Frequency (f) | 50/60 Hz |
| Load Type | Universal and LED Retrofit |
| LEDi | |
| Incandescent Lamp | |
| Halogen Lamp, High Voltage | |
| Halogen Lamp, Low Voltage | |
| Design | |
| Color | light grey |
| Dimensions | |
| Width in Number of Modular Spacings | 6.0 |
| Product Net Width | 105 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 208 g |
| Dimension Diagram | 2CDC072026F0017 |
| Engineering | |
| EPLAN Data | 9AAC189180_EPLAN |
| Ordering | |
| Replaced Product ID (OLD) | 2CKA006197A0036,2CKA006197A0046 |
| E-Number (Finland) | 2814591 |
| E-Number (Norway) | 4544217 |
| E-Number (Sweden) | 1739490 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E4769 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E2617 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0224 |
| Declaration of Conformity - UKCA | 2CKA400000E0293 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001094 - Dimming actuator for bus system |
| ETIM 10 | EC001094 - Dimming actuator for bus system |
| eClass | V11.0 : 27143123 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006197A0047 UD/S 4.210.2.1 EN_2CKA006197A0047.pdf | 112 Kbytes |
|
