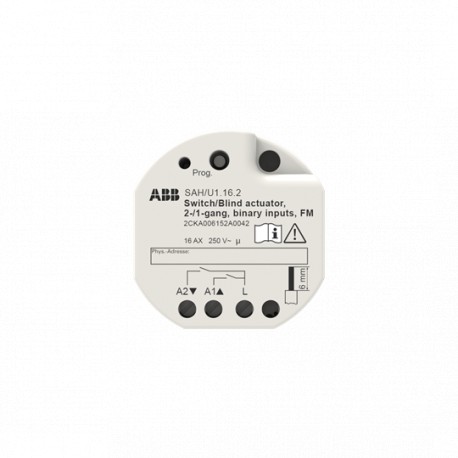

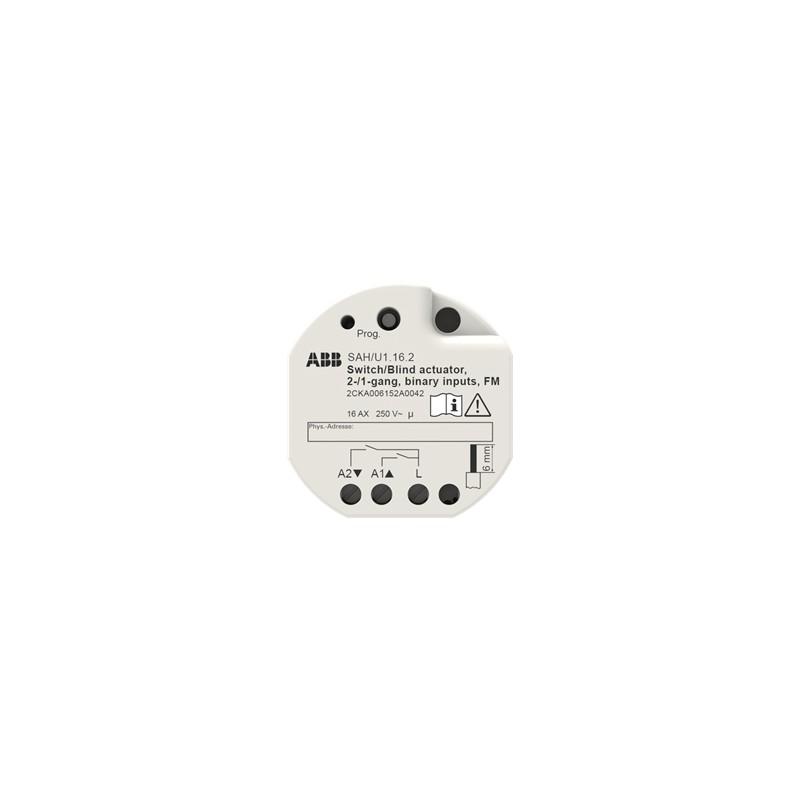

2CKA006152A0042 SAH/U2.16.2 NIESSEN Actuador Persianas, 1 canal
2CKA006152A0042
SAH/U2.16.2
NIESSEN
Actuador Persianas, 1 canal
Actuator Blinds, 1 channel
Switch/shutter 2f/1f, FM
Installation bus systems > Switch actuator for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CKA001373B5243 |
| Instructions and Manuals (Part 2) | 2CKA001473B5243 |
| Mounting Type | Flush Mounted |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001373B5243 |
| Data Sheet, Technical Information (Part 2) | 2CKA001473B5243 |
| Number of Outputs | 2 |
| Number of Inputs | 3 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Twisted Pair Wiring |
| Terminal Type | Bus Connection |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Rated Current (In) | 8 A |
| Rated Frequency (f) | 50 Hz |
| Load Type | Universal and LED Retrofit |
| LEDi/CFLi | |
| Incandescent Lamp | |
| Halogen Lamp, High Voltage | |
| Halogen Lamp, Low Voltage | |
| Fluorescent Lamp | |
| Electrical Drives | |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 50 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Weight | 83 g |
| Engineering | |
| EPLAN Data | 9AKK108464A1206 |
| Ordering | |
| Replaced Product ID (OLD) | 2CKA006152A0040 |
| E-Number (Finland) | 2815740 |
| E-Number (Norway) | 4544001 |
| E-Number (Sweden) | 1740227 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E7275 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E4510 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001097 - Switch actuator for bus system |
| ETIM 10 | EC001097 - Switch actuator for bus system |
| eClass | V11.0 : 27143125 |
| UNSPSC | 31251516 |
| IDEA Granular Category Code (IGCC) | 3268 >> Switch actuator |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006152A0042 SAH/U2.16.2 EN_2CKA006152A0042.pdf | 235 Kbytes |
|
